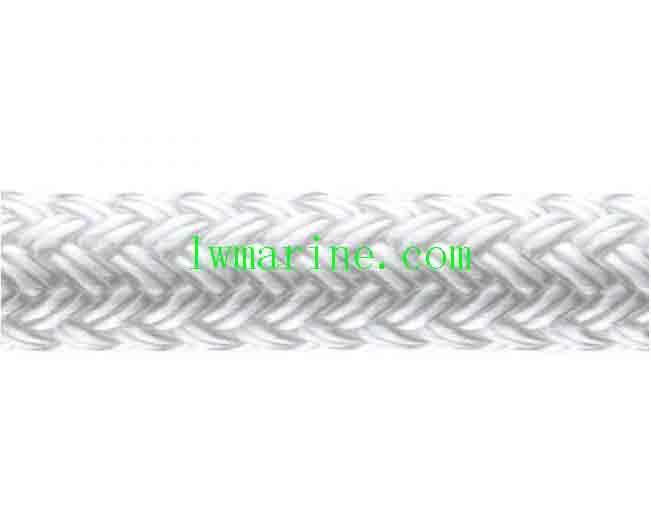

Double Braided Rope

Double Braided Rope

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Double Braided Rope

General Description

The products independently developed by the company include nylon multifilament (thread), polyester, polypropylene filament and other series products, which can be made of two kinds of chemical fiber materials in inner and outer layers to meet the special needs of users. The product adopts a new type of technology to reduce the strong self-consumption of chemical fiber materials in the production process and improve the synchronization of the inner and outer layers of the rope. Its strength is increased by more than 10% compared with similar products, and it has the advantages of enhanced wear resistance, reduced elongation, and floating.
It is mainly used for supporting large-scale ships at home and abroad, ocean transportation, national defense and military industry, maritime operations, docks and ports.

Technology Comparison

  • Length per coil: 220m

  • Spliced strength: ±10% lower

  • Weight and length tolerance: ±5%

  • Weight and length deviation: ±5%

  • Minimum breaking load (ISO 2307 standard): Please refer to parameter table.

  • Other sizes can be customized: We can customize it according to customer requirements.

Chart Legend (Extracted):

  • Blue line: PP MONO

  • Red line: PA MONO

  • Yellow line: Polyester

  • Green line: Polyamide Multifilament

  • Purple line: PP Multifilament

  • Black line: PP / PET Mixed

Main performance
Material Polyamide Multifilament Polypropylene Multifilament Polyester Polyester / Polypropylene Mixed Polyester / Polyamide Mixed Polyamide / Polypropylene Mixed
Spec. Density 1.14 (not floating) 0.91 (floating) 1.38 (not floating) 0.99 (floating) 1.19 (not floating) 0.98 (floating)
Melting Point 215°C 165°C 260°C 260°C / 165°C 260°C / 215°C 215°C / 165°C
Abrasion Resistance Very Good Medium Good Good Good Good
U.V. Resistance Very Good Medium Good Good Good Good
Temperature Resistance 100°C max 120°C max 60°C max 60°C max 100°C max 70°C max
Parameter Table
Specification PA (Polyamide Multifilament) Polyester PP (Polypropylene Multifilament) Polyester / PA (Nylon) Polyester / PP Polyamide / PP
Dia. (mm) / Circ. (in) Linear Density (ktex) Breaking Strength (kN) Linear Density (ktex) Breaking Strength (kN) Linear Density (ktex) Breaking Strength (kN) Linear Density (ktex) Breaking Strength (kN) Linear Density (ktex) Breaking Strength (kN) Linear Density (ktex) Breaking Strength (kN)
4 / 1/2 10.3 3.7 12.2 3.2 8.4 2.4 12.0 4.0 9.0 2.6 8.5 2.7
6 / 3/4 23 8.3 27.4 7.2 18.8 5.4 27.0 9.0 20.2 5.8 19.0 6.0
8 / 1 41 14.8 49 13.1 33.6 9.6 48 16.0 36 10.3 34 11.0
10 / 1-1/4 64 23 76 20 52 15 75 25 56 16 53 17
12 / 1-1/2 92 33 109 29 75 22 108 35 81 23 76.6 25
14 / 1-3/4 126 45 149 39 102 29 147 47 110 31 108 33
16 / 2 164 58 194 51 133 38 191 63 145 41 142 44
18 / 2-1/4 207 75 246 65 168 49 243 78 181 52 179 55
20 / 2-1/2 255 92 304 80 208 60 300 96 224 64 221 68
22 / 2-3/4 309 111 368 97 252 73 363 116 271 77 268 82
24 / 3 368 131 438 115 300 87 432 136 322 93 319 98
28 / 3-1/2 501 172 597 157 404 118 585 182 430 124 434 130
32 / 4 654 225 779 205 528 154 760 236 576 162 566 170
36 / 4-1/2 828 285 998 262 668 195 970 314 732 216 717 227
40 / 5 1021 350 1225 309 835 244 1190 375 905 261 885 262
44 / 5-1/2 1236 420 1470 378 1006 294 1440 462 1083 324 1070 341
48 / 6 1473 500 1760 450 1190 354 1710 546 1300 380 1270 400
52 / 6-1/2 1730 600 2050 535 1390 411 2010 635 1525 443 1500 466
56 / 7 1999 698 2380 620 1610 476 2330 735 1773 518 1730 546
60 / 7-1/2 2297 780 2740 712 1850 539 2670 834 2035 584 1990 615
64 / 8 2616 900 3120 810 2090 613 3050 942 2310 665 2270 700
72 / 9 3306 1090 3950 980 2640 767 3860 1180 2924 846 2870 890
80 / 10 4089 1320 4900 1180 3270 950 4780 1450 3620 1050 3540 1100
88 / 11 4954 1626 5910 1500 3950 1117 5780 1729 4371 1254 4280 1320
96 / 12 5892 1950 7020 1750 4710 1304 6870 2033 5207 1501 5100 1580
104 / 13 6911 2320 8250 2050 5480 1513 8070 2402 6112 1785 6000 1850
112 / 14 8015 2680 9580 2380 6345 1745 9350 2790 7097 2065 6900 2150
120 / 15 9198 3050 10970 2750 7350 2010 10740 3120 8127 2360 7950 2450

Other sizes can be customized

Note: The description may be different with the product, please contact us for quotation.
