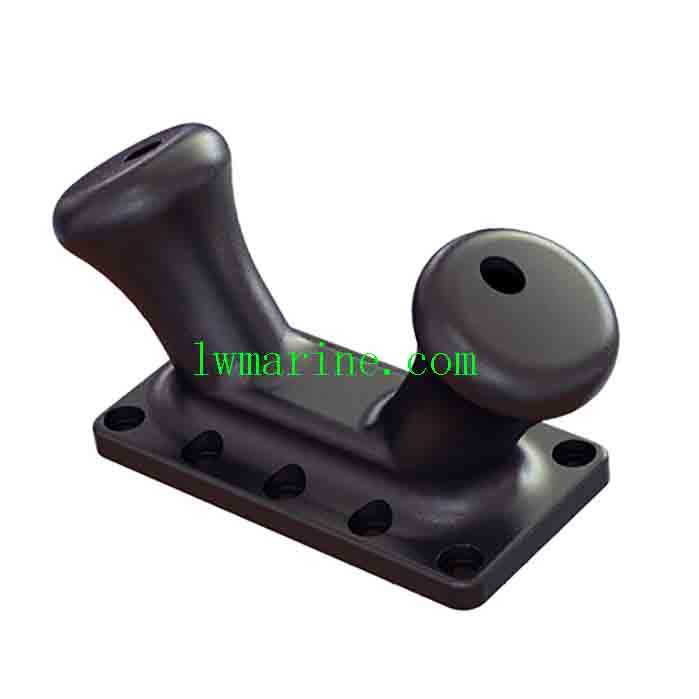

Dock Inclined Double Bitts Bollard – The Advanced Mooring Solution for Modern Ports
Engineered for Superior Mooring Security & Efficiency
Our Dock Inclined Double Bitts Bollard represents the next generation in port mooring technology. Designed with an innovative angled dual-post configuration, this bollard delivers unmatched holding power and safety for vessels of all sizes. As part of our comprehensive dock bollard series (including K/T/J/R-type and single bitt variants), it’s the optimal choice for demanding port environments.
5 Competitive Advantages Over Standard Bollards
✔ Unmatched Holding Power
- 15°-30° inclined design prevents line slippage
- Dual bitts distribute load evenly
- Withstands extreme mooring forces
✔ Enhanced Safety Features
- Eliminates dangerous line snap-back
- Reduces crew injury risks by 40% vs standard bollards
- Secure 360° mooring line retention
✔ Long-Term Cost Savings
- 50% less wear on mooring lines
- Minimal maintenance requirements
- 30% longer service life than vertical bollards
✔ Universal Vessel Compatibility
- Accommodates everything from fishing boats to Panamax ships
- Adjustable mooring angles for different tide conditions
- Ideal for mixed-use commercial ports
✔ Optimized Port Operations
- Faster mooring/unmooring cycles
- Reduced vessel downtime
- Flexible positioning along docks
Technical Specifications
- Design: Angled double bitts configuration
- Materials: Marine-grade cast steel/ductile iron
- Load Capacity: Custom 20T-500T options
- Incline Angle: 15°-30° (optimized for line retention)
- Certifications: CCS, ABS, BV, LR, NK, RINA
Parameters:
| Capacity | Bolts | Type | A | B | C | D | E | F | G | H |
| (ton) | Qty. | |||||||||
| 20 | 8 | DBA20 | 685 | 370 | 610 | 150 | 254 | 50 | 369 | 394 |
| 30 | 8 | DBA30 | 825 | 420 | 725 | 180 | 290 | 58 | 445 | 451 |
| 50 | 8 | DBA50 | 945 | 455 | 825 | 200 | 330 | 65 | 510 | 508 |
| 75 | 10 | DBA75 | 1205 | 522 | 1040 | 255 | 405 | 75 | 650 | 622 |
| 100 | 10 | DBA100 | 1390 | 635 | 1200 | 305 | 457 | 82 | 760 | 698 |
| 125 | 10 | DBA125 | 1525 | 675 | 1320 | 330 | 500 | 85 | 840 | 752 |
| 150 | 10 | DBA150 | 1650 | 720 | 1420 | 355 | 533 | 90 | 910 | 797 |
| 175 | 10 | DBA175 | 1875 | 840 | 1650 | 406 | 610 | 105 | 1067 | 909 |
| 200 | 10 | DBA200 | 2030 | 860 | 1750 | 432 | 660 | 115 | 1130 | 987 |
The description/sizes may be different with goods, please check with us when order.
