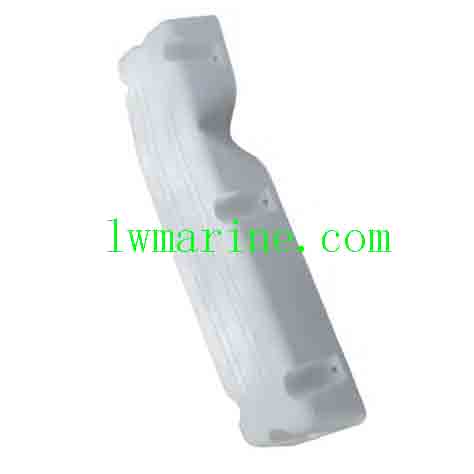

Dock Corner Fender

Dock Corner Fender – Marine-Grade Protection for Ports & Harbors

Engineered to safeguard critical infrastructure, our Dock Corner Fender provide superior impact absorption and vessel protection at port and harbor corners. Specifically designed for installation on the most vulnerable points of harbor walls, dock edges, and terminal corners, these robust fenders effectively minimize damage during berthing and mooring operations. Manufactured from durable materials to withstand harsh marine environments, they offer reliable, long-lasting protection for both vessels and waterfront structures.

Technical Specifications

Specification	150Hx500L	200Hx750L	250Hx750L	250Hx1000L
H	150	200	250	250
L	500	750	750	1000
A	300	400	500	500
P	200	350	350	550
a	240	320	410	410
C	75	100	100	150
d	25	29	34	34
e	55	75	90	90
f	95	105	125	125
J	98	130	164	164
T	22.5	35	37.5	37.5
h	16.5	30	20.5	20.5
MD	M22	M24	M27	M27

All dimensions are in millimeters (mm). MD indicates Mounting Drill size.

Key Features & Benefits:

Corner-Specific Design: Optimized geometry for effective energy absorption on dock and quay corners.
Robust Construction: Built from high-resilience materials for exceptional durability and a long service life.
Infrastructure Protection: Helps prevent damage to both marine vessels and port structures, reducing maintenance costs.
Versatile Sizing: Available in multiple standard sizes to fit various applications and impact requirements.
Easy Installation: Pre-drilled mounting holes for straightforward and secure installation on concrete or steel structures.
