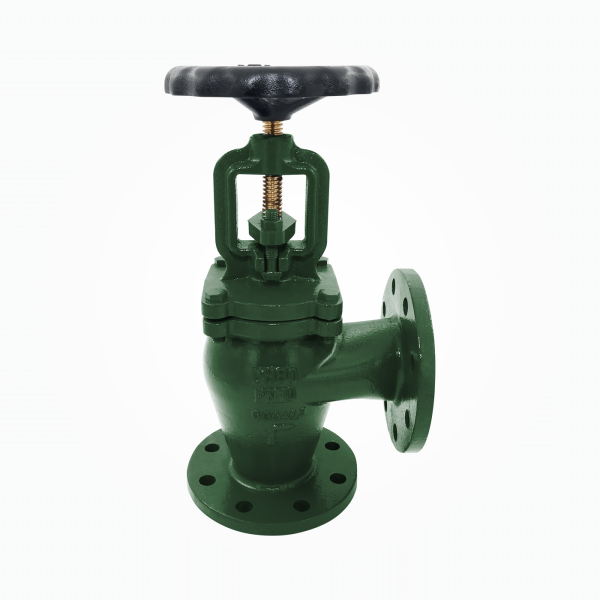

Cast Iron DIN Marine Valve – Robust Flow Control for Demanding Marine Applications
Product Overview
Cast Iron DIN Marine Valve is engineered for superior performance in the most demanding marine environments. Manufactured to stringent DIN standards with IACS certification (LR, CCS, ABS, RINA, BV), these valves offer exceptional durability, corrosion resistance, and reliability for critical shipboard systems. Available in multiple configurations including check, globe, and quick-closing types, they provide comprehensive flow control solutions for DN40 to DN600 piping systems with pressure ratings up to PN10.
Key Features & Benefits
-
✅ DIN Standard Compliance – Meets international marine engineering standards
-
✅ IACS Certification Ready – LR, CCS, ABS, RINA, BV approvals available
-
✅ Wide Size Range – DN40 to DN600 for various marine applications
-
✅ Multi-Pressure Ratings – PN2.5, PN6, PN10 for flexible system design
-
✅ Corrosion-Resistant Construction – Bronze seat rings and brass stem for longevity
-
✅ Comprehensive Product Range – 7+ valve types for all marine flow control needs
-
✅ Custom Material Options – Special materials available upon request
Material Specifications
| Component | Standard Material | Custom Options |
|---|---|---|
| Body & Bonnet | Cast Iron | Ductile Iron, SG Iron |
| Body Seat Rings | Bronze | Stainless Steel, Monel |
| Stem | Brass | Stainless Steel, Bronze |
| Handwheel | Cast Iron | Bronze, Steel |
| Bonnet Gasket | Novus 34 | Various gland packing materials |
Product Range
-
DIN Cast Iron Angle Check Valve
-
DIN Cast Iron Globe Valve
-
DIN Cast Iron Angle Globe Valve
-
DIN Double Check Valve
-
DIN Angle Quick Closing Valve
-
DIN Quick Closing Valve
-
DIN Cast Iron Check Valve
Technical Specifications
-
Nominal Diameter: DN40-DN600
-
Pressure Ratings: PN2.5/6/10
-
Standards: DIN Marine Standards
-
Certifications: LR, CCS, ABS, RINA, BV (IACS)
-
Applications: Cooling, Ballast, Fuel, Water, Firefighting Systems
Dimension Table
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (Kgs) |
|---|---|---|---|---|---|---|
| 75 56 01 | 40 | 150 | 140 | 230 | 125 | 10 |
| 75 56 02 | 50 | 165 | 150 | 245 | 150 | 12 |
| 75 56 03 | 65 | 185 | 170 | 290 | 175 | 17 |
| 75 56 04 | 80 | 200 | 180 | 315 | 175 | 22 |
| 75 56 05 | 100 | 220 | 190 | 355 | 200 | 27 |
| 75 56 06 | 125 | 250 | 200 | 415 | 200 | 33 |
| 75 56 07 | 150 | 285 | 210 | 460 | 225 | 43 |
| 75 56 08 | 200 | 340 | 230 | 545 | 225 | 65 |
| 75 56 09 | 250 | 395 | 250 | 635 | 250 | 100 |
| 75 56 10 | 300 | 445 | 270 | 728 | 300 | 142 |
| 75 56 11 | 350 | 505 | 290 | 888 | 400 | 207 |
| 75 56 12 | 400 | 565 | 310 | 964 | 400 | 246 |
| 75 56 13 | 500 | 670 | 350 | 1150 | 500 | 416 |
| 75 56 14 | 600 | 780 | 390 | 1320 | 500 | 624 |
The description/sizes may be different with goods, please check with us when order.
