Marine DIN Bronze Globe Valve | PN6/10/16 Rated for Fluid Control in Marine Systems
Product Overview

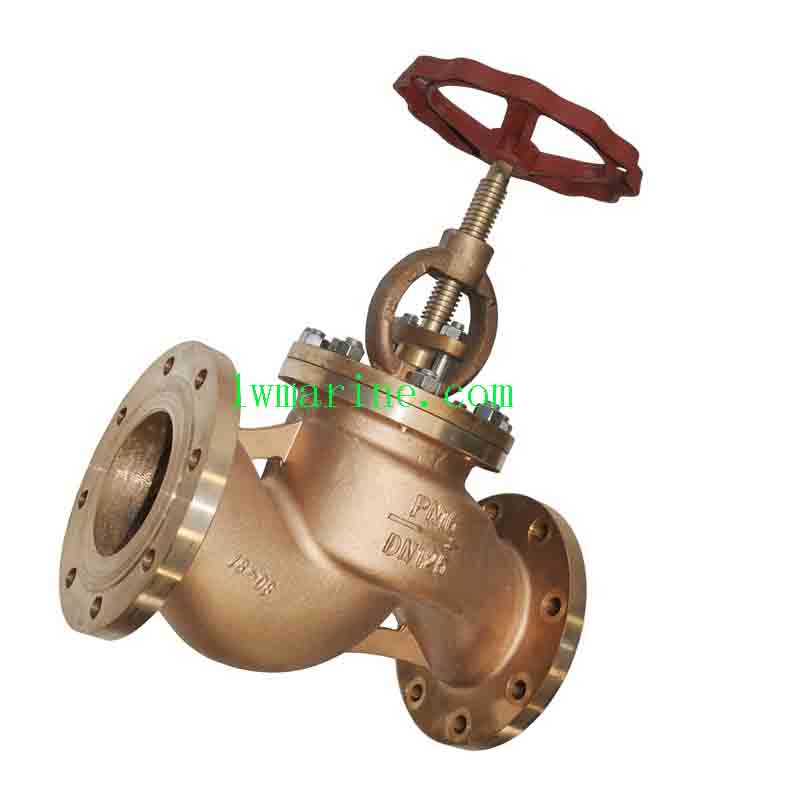

Our Marine DIN Bronze Globe Valve is precision-engineered for reliable flow regulation and shut-off control in marine fluid systems. Designed to DIN standards with multiple pressure ratings, this bronze globe valve ensures leak-free operation and efficient performance in water, gas, and oil applications aboard vessels and offshore installations. The all-bronze construction with brass stem provides exceptional corrosion resistance in saltwater environments.
Key Features & Benefits
-
DIN Standard Compliance: Manufactured to German industrial standards for marine applications
-
Multiple Pressure Ratings: Available in PN6, PN10, and PN16 for versatile system compatibility
-
Full Bronze Construction: Excellent corrosion resistance for seawater and marine environments
-
Leak-Free Shut-off: Reliable sealing prevents system leaks and ensures operational efficiency
-
Graphite Gasket Sealing: High-temperature resistance and long-term sealing reliability
-
Custom Material Options: Flexible customization available to meet specific business requirements
-
Easy Installation & Maintenance: User-friendly design reduces downtime and service costs
Technical Specifications
-
Standard: DIN Marine Compliance
-
Nominal Diameter: DN15 to DN300
-
Pressure Ratings: PN6, PN10, PN16
-
Body Material: Bronze
-
Disc Material: Bronze
-
Bonnet Material: Bronze
-
Stem Material: Brass
-
Gasket Material: Graphite
-
Handwheel Material: Cast Iron
Applications
-
Marine cooling water systems
-
Shipboard freshwater distribution
-
Fuel and lubricating oil control
-
Compressed air and gas systems
-
Ballast and bilge water management
-
Offshore platform fluid handling
-
Engine room auxiliary systems
Quality Assurance
-
Reliable Performance: Designed for long service life in demanding marine conditions
-
Tight Shut-off: Ensures system integrity and prevents fluid leakage
-
Marine Environment Optimized: Bronze construction resists saltwater corrosion
-
International Standards: Complies with global marine requirements
Dimension Chart (PN16 Rating)
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (Kgs) |
|---|---|---|---|---|---|---|
| 75 51 61 | 15 | 95 | 120 | 175 | 100 | 4.3 |
| 75 51 62 | 20 | 105 | 120 | 175 | 100 | 5.0 |
| 75 51 63 | 25 | 115 | 140 | 178 | 125 | 6.0 |
| 75 51 64 | 32 | 140 | 150 | 200 | 125 | 8.7 |
| 75 51 65 | 40 | 150 | 155 | 220 | 140 | 10.0 |
| 75 51 66 | 50 | 165 | 180 | 250 | 140 | 13.2 |
| 75 51 67 | 65 | 185 | 200 | 260 | 140 | 23.0 |
| 75 51 68 | 80 | 200 | 240 | 300 | 180 | 31.9 |
| 75 51 69 | 100 | 220 | 270 | 350 | 200 | 42.8 |
| 75 51 70 | 125 | 250 | 320 | 380 | 220 | 62.0 |
| 75 51 71 | 150 | 285 | 370 | 440 | 280 | 88.0 |
| 75 51 73 | 200 | 340 | 500 | 620 | 315 | 136.0 |
| 75 51 74 | 250 | 395 | 730 | 670 | 400 | 165.0 |
| 75 51 75 | 300 | 445 | 850 | 750 | 400 | 295.0 |
The description/sizes may be different with goods, please check with us when order.
