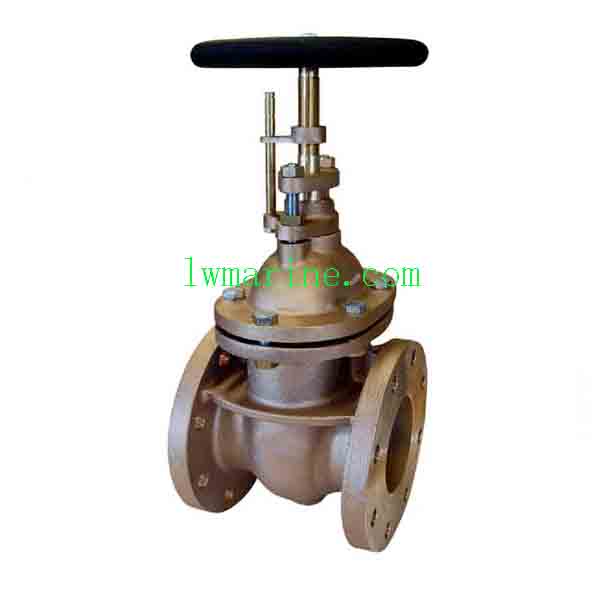

Marine DIN Bronze Gate Valve | Full Bore Flow Control Valves for Ships & Offshore Systems
Product Overview
The Marine DIN Bronze Gate Valve offers a robust and reliable solution for on/off flow control in demanding marine applications. Manufactured to DIN standards, this full-bore gate valve features bronze construction with brass components, ensuring excellent corrosion resistance and durability in seawater environments. With multiple pressure ratings and complete asbestos-free sealing, it provides safe and efficient operation in various marine fluid systems while maintaining compatibility with other marine equipment.
Key Features & Benefits
-
✅ DIN Standard Compliance: Meets international dimensional and performance standards
-
✅ Full Bore Design: Provides maximum flow capacity with minimal pressure drop
-
✅ Bronze Construction: Superior corrosion resistance for marine environments
-
✅ Multiple Pressure Ratings: PN4, PN6, PN10, PN16 for various application needs
-
✅ Asbestos-Free Sealing: Environmentally safe gland packing and gasket materials
-
✅ Position Indicator: Visual open/close status indication for safe operation
-
✅ Heavy-Duty Construction: Flat-faced flanges ensure secure connections
-
✅ Custom Material Options: Cast steel, SS304, SS316L available upon request
-
✅ Classification Society Certification: ABS, BV, LR, DNV, etc. available
Technical Specifications
-
Design Standard: DIN
-
Pressure Ratings: PN4, PN6, PN10, PN16
-
Nominal Diameter: DN40-DN300
-
Body, Bonnet & Wedge: Bronze
-
Stem: Brass
-
Bonnet Gasket: Asbestos-Free
-
Gland Packing: Asbestos-Free
-
Position Indicator: Brass
Applications
-
Marine seawater cooling systems
-
Shipboard water supply and distribution
-
Fuel and oil transfer lines
-
Ballast and bilge systems
-
Firefighting and emergency systems
-
Offshore platform piping networks
Dimensions & Specifications
| CODE | DN | D (mm) | H (mm) | L (mm) | M (mm) | Weight (Kgs) |
|---|---|---|---|---|---|---|
| 75 55 51 | 40 | 150 | 260 | 140 | 140 | 11.5 |
| 75 55 52 | 50 | 165 | 260 | 150 | 140 | 14 |
| 75 55 53 | 65 | 185 | 320 | 170 | 160 | 18 |
| 75 55 54 | 80 | 200 | 350 | 180 | 160 | 21 |
| 75 55 55 | 100 | 220 | 410 | 190 | 200 | 29 |
| 75 55 56 | 125 | 250 | 440 | 200 | 200 | 38 |
| 75 55 57 | 150 | 285 | 520 | 210 | 250 | 50 |
| 75 55 59 | 200 | 340 | 630 | 230 | 250 | 79 |
| 75 55 60 | 250 | 395 | 720 | 250 | 315 | 108 |
| 75 55 61 | 300 | 445 | 820 | 270 | 400 | 187 |
The description/sizes may be different with goods, please check with us when order.
