Marine DIN Bronze Angle Globe Valve – Premium 90° Flow Control for Harsh Marine Environments
Product Overview

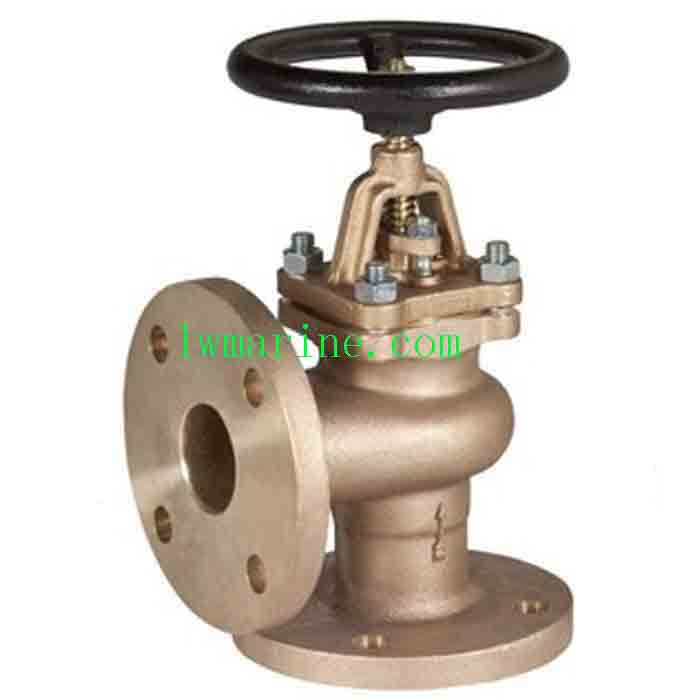

The Marine DIN Bronze Angle Globe Valve is a high-performance flow control valve specifically engineered for demanding marine applications. Featuring a durable bronze construction with 90° angle design, this valve excels in regulating fluids and gases in shipboard piping systems. Available in PN6, PN10, and PN16 pressure ratings with sizes from DN15 to DN300, it offers exceptional corrosion resistance, reliable sealing, and precise flow control for critical marine operations. DIN standard compliance ensures compatibility with international marine systems.
Key Features & Benefits
-
✅ 90° Angle Design – Space-saving configuration ideal for compact marine installations
-
✅ Marine-Grade Bronze Construction – Superior corrosion resistance in saltwater environments
-
✅ Multiple Pressure Ratings – PN6, PN10, PN16 for versatile application requirements
-
✅ Graphite Gasket Sealing – High-temperature resistance and reliable leak-proof performance
-
✅ DIN Standard Compliance – Ensures international compatibility and easy installation
-
✅ Precise Flow Regulation – Excellent throttling capability for accurate control
-
✅ Custom Material Options – Special materials available upon request
Material Composition
| Component | Standard Material | Properties |
|---|---|---|
| Body & Bonnet | Bronze | Excellent seawater corrosion resistance |
| Disc | Bronze | Superior wear resistance and sealing |
| Stem | Brass | Smooth operation and corrosion resistance |
| Handwheel | Cast Iron | Durable and cost-effective operation |
| Gasket | Graphite | High-temperature resistance, reliable sealing |
Technical Specifications
-
Nominal Diameter: DN15-DN300
-
Pressure Ratings: PN6, PN10, PN16
-
Standards: DIN Marine Standards
-
Angle Design: 90° between inlet and outlet
-
Media: Water, Steam, Oil, Gas, Marine Fluids
-
Applications: Marine vessels, offshore platforms, port facilities
Dimension Table (PN16)
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (Kgs) |
|---|---|---|---|---|---|---|
| 75 51 76 | 15 | 95 | 65 | 175 | 100 | 4.0 |
| 75 51 77 | 20 | 105 | 65 | 175 | 100 | 5.5 |
| 75 51 78 | 25 | 115 | 70 | 178 | 125 | 6.2 |
| 75 51 79 | 32 | 140 | 90 | 200 | 125 | 8.4 |
| 75 51 80 | 40 | 150 | 90 | 220 | 140 | 10.0 |
| 75 51 81 | 50 | 165 | 105 | 250 | 140 | 12.8 |
| 75 51 82 | 65 | 185 | 115 | 260 | 140 | 23.2 |
| 75 51 83 | 80 | 200 | 125 | 300 | 180 | 31.0 |
| 75 51 84 | 100 | 220 | 145 | 350 | 200 | 41.0 |
| 75 51 85 | 125 | 250 | 170 | 380 | 220 | 65.0 |
| 75 51 86 | 150 | 285 | 200 | 440 | 280 | 89.0 |
| 75 51 88 | 200 | 340 | 250 | 570 | 315 | 127.0 |
| 75 51 89 | 250 | 395 | 325 | 550 | 400 | 155.0 |
| 75 51 90 | 300 | 445 | 375 | 620 | 400 | 225.0 |
The description/sizes may be different with goods, please check with us when order.
