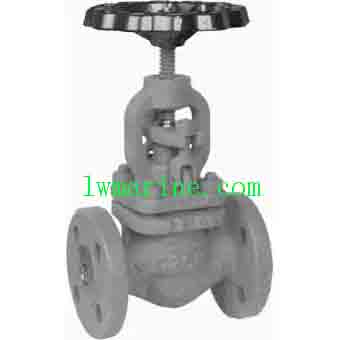

Marine DIN Cast Steel Angle Globe Valve | PN16 Rated for Shipside & Marine Applications
Product Overview
Our Marine DIN Cast Steel Angle Globe Valve is engineered for critical marine applications, specifically designed for use as shipside valves and other demanding onboard systems. Manufactured to DIN standards with PN16 pressure rating, this angle globe valve features a robust cast steel construction with bronze trim, providing exceptional durability and corrosion resistance in harsh marine environments. The angled design offers optimal flow control with minimal pressure drop, making it ideal for space-constrained marine installations.
Key Features & Benefits
-
DIN Standard Compliance: Manufactured to German industrial standards for marine applications
-
PN16 Pressure Rating: Suitable for medium-pressure marine systems
-
Angle Design Configuration: Space-saving installation with improved flow characteristics
-
Cast Steel Construction: Superior strength and durability for marine environments
-
Bronze Seat & Stem: Excellent corrosion resistance and reliable sealing
-
Graphite Packing & Gaskets: High-temperature resistance and long-term sealing reliability
-
Custom Material Options: Tailored material configurations available per customer requirements
Technical Specifications
-
Standard: DIN Marine Compliance
-
Nominal Diameter: DN15 to DN400
-
Pressure Rating: PN16
-
Body & Bonnet: Cast Steel
-
Seat & Stem: Bronze
-
Gland Packing: Graphite
-
Bonnet Gasket: Graphite
-
Handwheel: Cast Iron
Applications
-
Shipside valves and seawater intake systems
-
Marine cooling water circuits
-
Fuel and lubricating oil systems
-
Ballast and bilge water management
-
Firefighting and deck water systems
-
Offshore platform piping networks
Quality Assurance
-
Strict Quality Control: Comprehensive testing throughout manufacturing process
-
Multi-Media Compatibility: Suitable for water, oil, steam, and various marine fluids
-
Marine Environment Optimized: Designed for saltwater corrosion resistance
-
Reliable Performance: Engineered for long service life in demanding conditions
Dimension Chart
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (Kgs) |
|---|---|---|---|---|---|---|
| 75 52 94 | 15 | 95 | 90 | 159 | 120 | 5.2 |
| 75 52 95 | 20 | 105 | 95 | 159 | 120 | 7.2 |
| 75 52 96 | 25 | 115 | 100 | 178 | 140 | 7.4 |
| 75 52 97 | 32 | 140 | 105 | 178 | 140 | 8.4 |
| 75 52 98 | 40 | 150 | 115 | 221 | 160 | 12.4 |
| 75 52 99 | 50 | 165 | 125 | 229 | 160 | 13.6 |
| 75 53 15 | 65 | 185 | 145 | 263 | 180 | 20 |
| 75 53 16 | 80 | 200 | 155 | 297 | 200 | 25 |
| 75 53 17 | 100 | 220 | 175 | 336 | 225 | 34 |
| 75 53 18 | 125 | 250 | 200 | 387 | 250 | 53 |
| 75 53 19 | 150 | 285 | 225 | 466 | 400 | 70 |
| 75 53 21 | 200 | 340 | 275 | 588 | 520 | 148 |
| 75 53 22 | 250 | 405 | 325 | 690 | 520 | 188 |
| 75 53 23 | 300 | 460 | 375 | 785 | 520 | 327 |
| 75 53 24 | 350 | 520 | 425 | 876 | 640 | 383 |
| 75 53 25 | 400 | 580 | 475 | 886 | 640 | 690 |
The description/sizes may be different with goods, please check with us when order.
