Diesel windlasses
Application

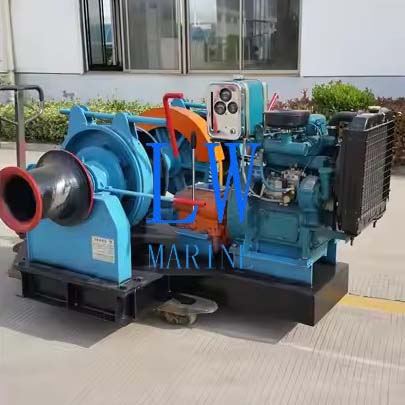

The Single Gypsy Diesel windlasses is a heavy-duty anchoring system designed for medium to large vessels requiring powerful and reliable anchor handling. Powered by a diesel engine, this windlass features a single gypsy wheel for efficient anchor chain management during deployment and retrieval operations.
Key components include:
-
Diesel engine drive system for high-torque performance
-
Single gypsy wheel for controlled chain handling
-
Chain stopper to secure the anchor when deployed
-
Optional capstan/winch for anchor rode management
For detailed technical specifications, please click here.
Key Features & Benefits
-
Robust Construction – Compact design with high-strength materials
-
Dual Control System – Local and remote operation capability
-
Low Maintenance – Easy installation and servicing requirements
-
Marine-Grade Durability – Corrosion-resistant for extended service life
-
Configurable Options – Available with or without warping head
-
Versatile Design – With or without drum configuration
-
Reliable Performance – Ensures safe and secure operations
-
Custom Solutions – Adaptable to specific vessel requirements
-
Precision Control – Manual or hydraulic brake/clutch systems
-
Certified Quality – Approved by LR, RINA and other classification societies
| Main Technical Data Of Windlass | |||||
| Chain Dia. | Working Speed | Warping Load | Working Load | Supporting Load | Motor Power |
| mm | m/min | KN | KN | KN | kW |
| 14/16/17.5 | ≥9 | 8 | 8.3/10.9/13.0 | 51/67/80 | 5.5 |
| 19/20.5/22 | ≥9 | 10 | 15.3/17.9/20.6 | 95/110/126 | 7.5 |
| 24/26 | ≥9 | 20 | 24.5/28.7 | 149/175 | 11 |
| 28/30 | ≥9 | 30 | 33.3/38.3 | 202/231 | 15 |
| 32/34/36 | ≥9 | 30 | 43.5/49.1/55.1 | 261/294/329 | 22 |
| 38/40/42 | ≥9 | 40 | 61.4/68.0/75.0 | 365/402/442 | 30 |
| 44/46/48 | ≥9 | 50 | 82.3/89.9/97.9 | 483/526/570 | 37 |
| 50/52/54 | ≥9 | 50 | 106.3/114.9/132.9 | 617/664/713 | 45 |
| 56/58/60 | ≥9 | 60 | 133.2/143.0/153.0 | 764/816/870 | 55 |
The description/sizes may be different with goods, please check with us when order.
