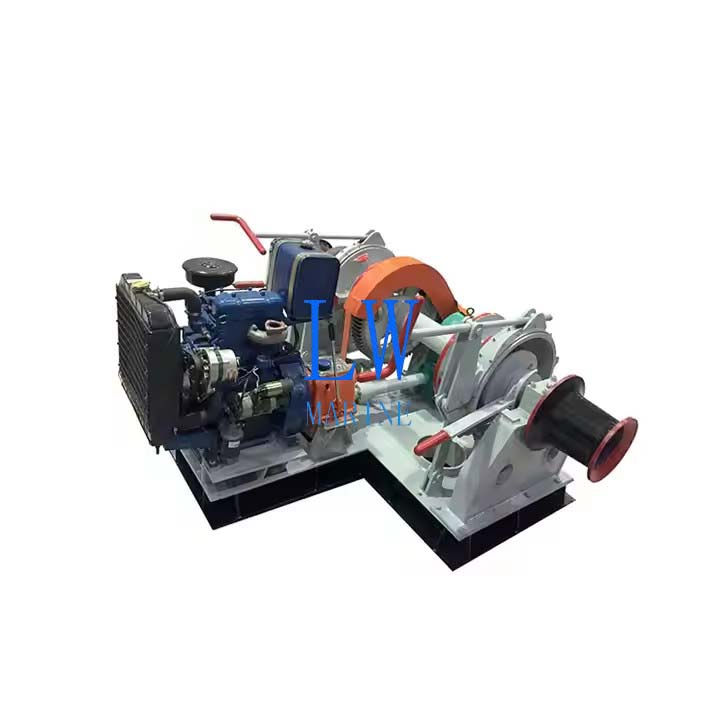

Diesel Engine Single Gypsy Windlass

Diesel Engine Single Gypsy Windlass

Certificate: CCS, GL and BV certificate.
Delivery Time: 30 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Diesel Engine Single Gypsy Windlass

Application

The Diesel Engine Single Gypsy Windlass is a heavy-duty anchoring system designed for medium to large vessels requiring reliable anchor handling capabilities. Powered by a diesel engine, this windlass features:

  • Single gypsy wheel for controlled anchor chain deployment/retrieval

  • High-torque performance for demanding marine conditions

  • Durable construction using marine-grade stainless steel or aluminum

Ideal for:

  • Commercial fishing vessels

  • Offshore supply ships

  • Tugboats

  • Research vessels

Key Features & Benefits

✔ Powerful Performance

  • Diesel engine driven for maximum pulling power

  • Suitable for vessels up to 50 meters

✔ Durable Construction

  • High-strength stainless steel/aluminum components

  • Corrosion-resistant for extended service life

✔ Operational Control

  • Local and remote operation capability

  • Manual or hydraulic brake/clutch options

✔ Custom Configurations

  • Optional warping head

  • Vessel-specific adaptations available

✔ Certified Quality

  • Approved by RINA, BV, LR

Technical Specifications

  1. Compact Heavy-Duty Design – Space-efficient yet robust

  2. Dual Control System – Flexible operation modes

  3. Low Maintenance – Simplified service requirements

  4. Marine Environment Ready – Superior corrosion protection

  5. Versatile Options – Configurable with/without warping head

  6. Precision Braking – Multiple control alternatives

  7. Safety Assured – Reliable load handling

  8. Tailored Solutions – Custom engineering available

  9. Industry Certified – Meets major classification standards

Main Technical Data Of Windlass
Chain Dia. Working Speed Warping Load Working Load Supporting Load Motor Power
mm m/min KN KN KN kW
14/16/17.5 ≥9 8 8.3/10.9/13.0 51/67/80 5.5
19/20.5/22 ≥9 10 15.3/17.9/20.6 95/110/126 7.5
24/26 ≥9 20 24.5/28.7 149/175 11
28/30 ≥9 30 33.3/38.3 202/231 15
32/34/36 ≥9 30 43.5/49.1/55.1 261/294/329 22
38/40/42 ≥9 40 61.4/68.0/75.0 365/402/442 30
44/46/48 ≥9 50 82.3/89.9/97.9 483/526/570 37
50/52/54 ≥9 50 106.3/114.9/132.9 617/664/713 45
56/58/60 ≥9 60 133.2/143.0/153.0 764/816/870 55

The description/sizes may be different with goods, please check with us when order.
