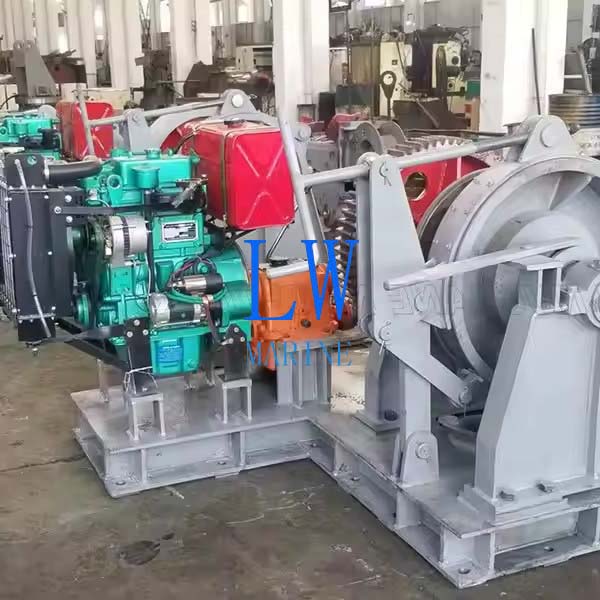

Marine Diesel Engine Anchor Windlass
Application
The marine diesel engine anchor windlass is a heavy-duty anchoring system powered by a diesel engine, primarily designed for large commercial and military vessels. This robust equipment performs critical functions including anchor deployment/retrieval and vessel positioning control.
Key components include:
-
Winch drum connected to the diesel engine via power transmission
-
Brake system for precise speed and direction control of anchor chains/cables
-
Available in two configurations:
-
Single gypsy wheel windlass
-
Double gypsy wheel windlass
-
For detailed specifications, please click here.
Material
-
Main structure: High-strength cast steel
-
Critical components: 316L stainless steel
Advantages and Features
-
Compact & Durable Design: Robust construction with high load capacity
-
Flexible Control: Local and remote operation capability
-
Low Maintenance: Easy installation and servicing
-
Corrosion Resistant: Long service life in marine environments
-
Configurable Options: Available with/without warping head
-
Versatile Design: With/without drum configuration
-
Reliable Performance: Ensures operational safety
-
Custom Solutions: Tailored to specific requirements
-
Braking Systems: Manual or hydraulic brake/clutch options
-
Certified Quality: Approved by BV, LR, RINA
| Main Technical Data Of Windlass | |||||
| Chain Dia. | Working Speed | Warping Load | Working Load | Supporting Load | Motor Power |
| mm | m/min | KN | KN | KN | kW |
| 14/16/17.5 | ≥9 | 8 | 8.3/10.9/13.0 | 51/67/80 | 5.5 |
| 19/20.5/22 | ≥9 | 10 | 15.3/17.9/20.6 | 95/110/126 | 7.5 |
| 24/26 | ≥9 | 20 | 24.5/28.7 | 149/175 | 11 |
| 28/30 | ≥9 | 30 | 33.3/38.3 | 202/231 | 15 |
| 32/34/36 | ≥9 | 30 | 43.5/49.1/55.1 | 261/294/329 | 22 |
| 38/40/42 | ≥9 | 40 | 61.4/68.0/75.0 | 365/402/442 | 30 |
| 44/46/48 | ≥9 | 50 | 82.3/89.9/97.9 | 483/526/570 | 37 |
| 50/52/54 | ≥9 | 50 | 106.3/114.9/132.9 | 617/664/713 | 45 |
| 56/58/60 | ≥9 | 60 | 133.2/143.0/153.0 | 764/816/870 | 55 |
The description/sizes may be different with goods, please check with us when order.
