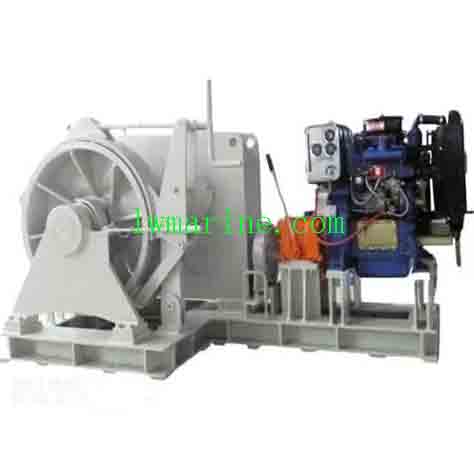

Diesel Anchor Windlasses – Heavy-Duty Mooring Solution
Product Overview
LW Marine’s Diesel Anchor Windlasses is engineered for reliable, high-power anchoring in commercial and offshore vessels. Designed to handle chains up to 160mm, they feature robust steel construction, corrosion-resistant components, and versatile drive options (diesel, electric, or hydraulic). Certified by ABS, BV, DNV, CCS, LR, NK, KR, RINA, they ensure safe and efficient mooring operations in harsh marine environments.
Key Features & Benefits
✔ Heavy-Duty Construction – Fabricated steel gears hardened for 200% overload capacity
✔ Multiple Drive Options – Diesel, electric, hydraulic, or hybrid (diesel + hydraulic)
✔ Easy Operation – Manually adjustable brakes & clutches (remote hydraulic control optional)
✔ Corrosion-Resistant – Epoxy-coated components and bronze bearings
✔ Low Maintenance – Easy-access lubrication points and split bearings for quick servicing
Technical Specifications
| Parameter | Specification |
|---|---|
| Chain Size | Up to 160mm (customizable) |
| Drive Types | Diesel / Electric / Hydraulic / Hybrid |
| Brake System | Manually adjustable (hydraulic assist optional) |
| Load Capacity | 5–200 tons (design-specific) |
| Certifications | ABS, BV, DNV, CCS, LR, NK, KR, RINA |
Main Technical Specification
| Chain Dia.(mm) | Mooring Pull(kN) | Working Speed(m/min) | Mooring Speed(m/min) | Working Load(kN) | Drum Capacity(m) | Motor Power(kW) |
| 14/16/17.5 | 8 | ≥9 | ≥12 | 8.3/10.9/13.0 | Ф11х100 | 4.3/1.7 |
| 19/20.5/22 | 15 | ≥9 | ≥12 | 15.3/17.9/20.6 | Ф13х120 | 8.5/3.5 |
| 24/26 | 20 | ≥9 | ≥12 | 24.5/28.7 | Ф15х120 | 8.5/3.5 |
| 28/30 | 30 | ≥9 | ≥12 | 33.3/38.3 | Ф18х150 | 11/11/7.5 |
| 32/34/36 | 40 | ≥9 | ≥12 | 43.5/49.1/55.1 | Ф20.5х150 | 16/16/11 |
| 38/40/42 | 50 | ≥9 | ≥12 | 61.4/68.0/75.0 | Ф20.5х150 | 22/22/16 |
| 44/46/48 | 60 | ≥9 | ≥12 | 82.3/89.9/97.9 | Ф26х200 | 30/30/22 |
| 50/52/54 | 60 | ≥9 | ≥15 | 106.3/114.9/123.9 | Ф26х200 | 30/30/22 |
| 56/58/60 | 80 | ≥9 | ≥15 | 133.3/143.0/153.0 | Ф26х200 | 45/45/30 |
| 62/64 | 80 | ≥9 | ≥15 | 163.4/174.1 | Ф30х200 | 45/45/30 |
| 66/68 | 100 | ≥9 | ≥15 | 185.1/196.5 | Ф30х200 | 45/45/30 |
| 70/73 | 120 | ≥9 | ≥15 | 208.3/226.5 | Ф32.5х200 | 60/60/45 |
| 76/78 | 125 | ≥9 | ≥15 | 245.5/258.6 | Ф32.5х200 | 60/60/45 |
| 81/84 | 140 | ≥9 | ≥15 | 311.7/335.2 | Ф36х200 | 75/75/36 |
| 78/90 | 150 | ≥9 | ≥15 | 359.5/384.8 | Ф38х200 | 75/75/36 |
| 92/95 | 200 | ≥9 | ≥15 | 402.0/428.7 | Ф40х200 | 85/85/64 |
| 97/100 | 250 | ≥9 | ≥15 | 446.9/475.0 | Ф42х200 | 100/100/50 |
| 105/107 | 300 | ≥9 | ≥15 | 523.7/543.8 | Ф44х200 | 110/110/55 |
| 112/114 | 350 | ≥9 | ≥15 | 595.8/617.3 | Ф48х200 | 132/132/66 |
The description/sizes may be different with goods, please check with us when order.
