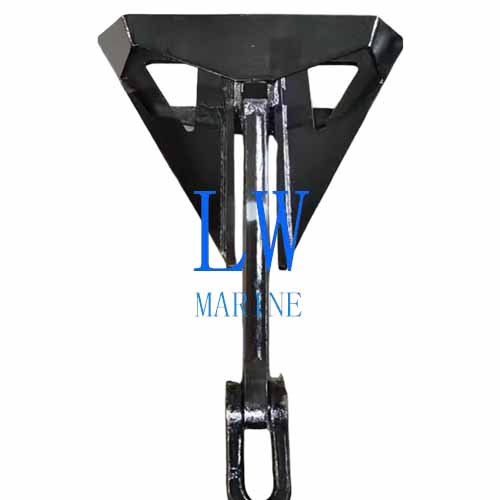

Delta Anchor
With over 7 years of industry experience, we supply a comprehensive range of marine anchors including:
-
Stockless anchors
-
Offshore anchors
-
High Holding Power (HHP) anchors
Superior Delta Anchor Features:
✔ Optimized Open Structure for effortless penetration across various seabed conditions
✔ Unmatched Holding Efficiency with superior weight-to-power ratio
✔ Modular Design allowing easy disassembly for transportation
✔ Reliable Performance – maintains position without rotation after setting
✔ Consistent Holding Capacity in extreme offshore environments
Technical Specifications:
-
Construction: High-strength steel plate & cast steel composite
-
Weight Range: 300 kg to 25,000 kg
-
Certifications: ABS, LR, BV, DNV, GL, NK, CCS

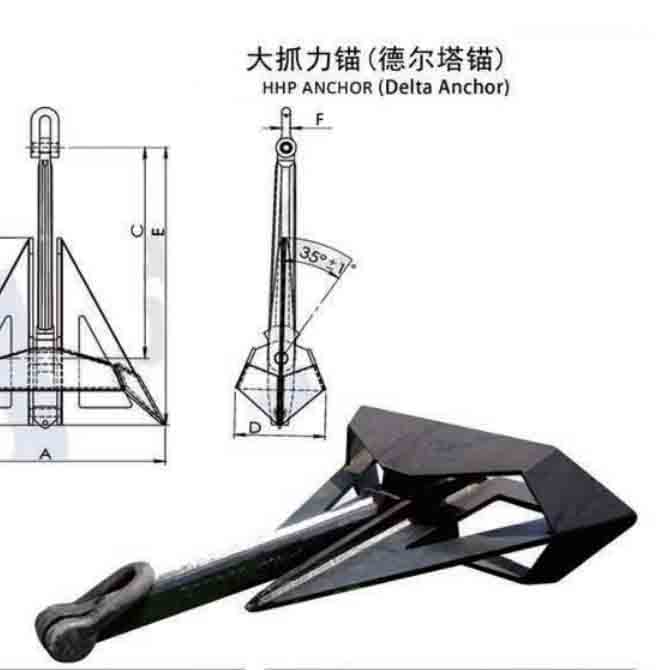

| Weight/Mass | Size(mm) | |||||
| (KG) | C | D | E | A | B | F |
| 300KGS | 1080 | 457 | 1380 | 1200 | 960 | 45 |
| 500KGS | 1350 | 571 | 1725 | 1500 | 1200 | 50 |
| 1000KGS | 1686 | 714 | 2155 | 1875 | 1500 | 62 |
| 1080KGS | 1686 | 722 | 2200 | 1915 | 1530 | 62 |
| 2000KGS | 2124 | 900 | 2715 | 2363 | 1890 | 82 |
| 3000KGS | 2430 | 1028 | 3105 | 2700 | 2160 | 90 |
| 4000KGS | 2676 | 1133 | 3420 | 2975 | 2380 | 100 |
| 5000KGS | 2922 | 1238 | 3735 | 3250 | 2600 | 110 |
| 7000KGS | 3216 | 1361 | 4100 | 3575 | 2860 | 117 |
| 7500KGS | 3290 | 1390 | 4210 | 3650 | 2925 | 117 |
| 8000KGS | 3360 | 1420 | 43000 | 3730 | 2900 | 130 |
| 9000KGS | 3555 | 1504 | 4543 | 3950 | 3160 | 135 |
| 10000KGS | 3690 | 1561 | 4715 | 4100 | 3280 | 140 |
| 12000KGS | 4030 | 1695 | 5320 | 4490 | 3575 | 145 |
| 13500KGS | 4195 | 1765 | 5535 | 4670 | 3720 | 150 |
| 15000KGS | 4355 | 1830 | 5735 | 4845 | 3875 | 150 |
| 18000KGS | 4610 | 1940 | 6080 | 5140 | 4080 | 160 |
| 20000KGS | 4790 | 2010 | 6310 | 5330 | 4260 | 170 |
| 22500KGS | 4905 | 2060 | 6470 | 5490 | 4360 | 180 |
| 25000KGS | 5160 | 2165 | 6795 | 5740 | 4590 | 195 |
Product specifications and dimensions are subject to manufacturing variations. Please confirm all details with our team before placing your order.
