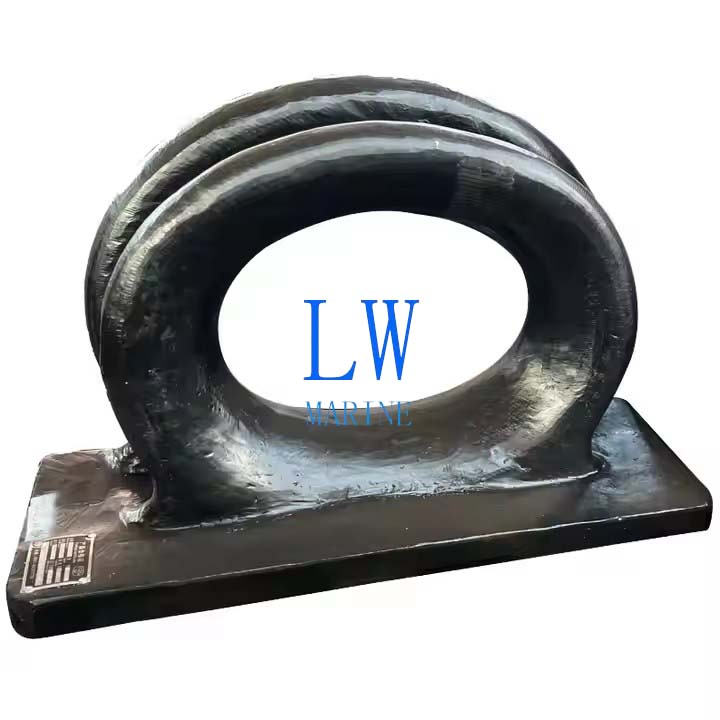

Deck Mounted Marine Chock – The Ultimate Rope Protection System
Engineered for Smooth & Safe Mooring Operations
Our Deck Mounted Marine Chock is precision-crafted to guide mooring ropes efficiently while minimizing abrasion against your vessel’s deck. These essential marine components extend rope lifespan and reduce breakage risks, making them a critical investment for any commercial or naval vessel.
Key Benefits at a Glance
✔ Superior Rope Protection
-
Reduces rope abrasion by up to 50%
-
Prevents dangerous line breakage under strain
-
Extends mooring rope service life significantly
✔ Heavy-Duty Construction
-
High-grade cast steel for unmatched durability
-
Primed paint finish for corrosion resistance
-
Optional foundation plates available
✔ Global Compliance & Safety
-
Certified by BV, ABS, CCS, LR, NK, KR, RINA
-
Meets all international marine safety standards
-
IACS inspection approved
✔ Flexible Installation Options
-
Direct deck mounting for easy retrofits
-
Foundation plate versions for reinforced setups
-
Custom designs to match your exact specifications
Technical Specifications
| Feature | Specification |
|---|---|
| Model Type | Deck Mounted Marine Chock |
| Material | Marine-Grade Cast Steel |
| Surface Finish | Primed Paint (Custom Coatings Available) |
| Mounting | Direct Deck or Foundation Plate |
| Certifications | All Major Classification Societies |
Standard |
Type of Deck Mounted Marine Chock | The Range of Nominal Size |
| Kevel Chock | Kevel Chock | A: 24’’, 30’’, 36’’, 42’’, 48’’ |
| Universal Closed Chock | Universal Closed Chock | Customized |
| Universal Open Chock | Universal Open Chock | Customized |
| EU Type Deck Mounted Chock | EU Type Deck Mounted Chock | A x B: |
| 315mmx250mm~800mmx600mm | ||
| ISO 13728 Panama Chock | Type A | L: 310mm, 360mm |
| JIS F2017 Type AP Panama Chock | Type AP | L: 310mm, 360mm |
| JIS F2017 Type AC Panama Chock | Type AC | L: 310mm, 360mm, 400mm, |
| 450mm, 500mm | ||
| DIN 81915 Chock | Type C, Type D, Type E | Type C: 200KN~320KN |
| Type D: 10KN~80KN | ||
| Type E: 80KN~200KN | ||
| JIS F2005-1975 Closed Chock | JIS F2005-1975 Closed Chock | L: 100mm~500mm |
| ISO13729 Type A Deck Mounted Closed Chock | Type A | L x H x D: |
| 250x200x214~500x400x525B | ||
| GB 11586-89 Panama Chock | Type AC, Type AP | Type AC (L): 310mm, 360mm, 400mm, 450mm, 500mm |
| Type AP (L): 310mm, 360mm | ||
| NS 2590 Mooring Chock | NS 2590 Mooring Chock | W1xW2: |
| 300mmx250mm, 400mmx250mm | ||
| CB/T 34-2007 Mooring Chock | Type B, Type BF | Type B: 100mm~500mm |
| Type BF: 100mm~500mm | ||
| JIS F2006 Open Chock | Type FC, Type SC | Type FC (L): 150mm~420mm |
| Type SC (L): 150mm~400mm |
The description/sizes may be different with goods, please check with us when order.
