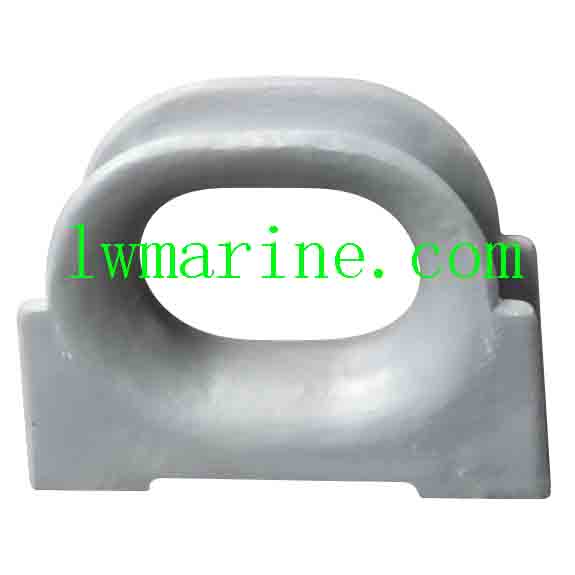

China Deck Mounted Chock NS2588: Heavy-Duty Marine Mooring Solution
Professionally manufactured in China, our Deck Mounted Chock NS2588 provides exceptional reliability and performance for marine mooring operations. Designed to meet rigorous Norwegian maritime standards, these robust deck chocks ensure safe and efficient mooring line guidance while withstanding harsh marine environments. We supply both Type A (welded steel) and Type B (cast steel) variants to match specific project requirements and vessel specifications.
Product Specifications & Manufacturing Quality
Material Specifications
-
Type A (Welded Construction): High-strength steel NS12 132 (R St42-2)
-
Type B (Cast Construction): Premium cast steel NS 11 640 (Sst 400)
Manufacturing Excellence
-
All mooring line contact surfaces are precision-finished to ensure smooth operation
-
Complete elimination of burrs and sharp edges to prevent rope damage and ensure safety
-
Strict quality control throughout production process
Surface Protection System
-
Surface preparation: Blast cleaning to Sa2.5 according to Swedish Standard SIS 05 59 00
-
Corrosion protection: Application of anti-corrosive primer for extended service life
-
Custom painting solutions available upon request
Technical Dimensions & Weight Specifications
| Nominal Size | c2 (mm) | d2 (mm) | e2 (mm) | f2 (mm) | h2 (mm) | t2 (mm) | Mass (kg) |
|---|---|---|---|---|---|---|---|
| 200×150 | 338 | 288 | 138 | 438 | 189 | 20 | 28.5 |
| 300×200 | 458 | 358 | 158 | 568 | 234 | 20 | 63.3 |
| 400×250 | 600 | 450 | 200 | 740 | 300 | 25 | 135 |
The description/sizes may be different with goods, please check with us when order.
