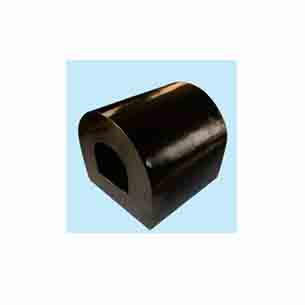

D Type Rubber Fender for Ship
Features
- D-type rubber fenders can be supplied in long lengths with angle cuts at the ends and drilled holes as required for each application, according to customer requirements for super-long sizes, angle cutting, and drilling.
- Simple installation method.
- Applicable for small docks, fishing boats, yachts, and floating piers.
- D fenders can also be installed as shown in Figure 1.
- Round holes are also available, as shown in Figures 2 & 3.
Specification Sizes
| Item | DD125 | DD150 | DD200 | DD250 | DD300 | DD350 | DD400 | DD500 |
|---|---|---|---|---|---|---|---|---|
| H (mm) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| B (mm) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| D (Φ) (mm) | 45 | 55 | 60 | 65 | 65 | 80 | 80 | 97 |
| d (mm) | 25 | 27 | 30 | 32 | 32 | 40 | 40 | 45 |
| Bolt Size | M20 | M24 | M24 | M27 | M27 | M30 | M30 | M36 |
| Q (kN) | 100 – 150 | 100 – 150 | 100 – 150 | 100 – 150 | 100 – 150 | 100 – 150 | 100 – 150 | 100 – 150 |
| P (kN) | 350 – 440 | 350 – 440 | 325 – 600 | 325 – 450 | 325 – 600 | 325 – 600 | 400 – 620 | |
| Reaction Force (kN) | 77 | 115 | 147 | 191 | 294 | 268 | 382 | 451 |
| Energy Absorption (kN·m) | 1.4 | 3.2 | 5.1 | 8.9 | 11.8 | 17.6 | 19.6 | 31.4 |
| Deflection | 50% | |||||||
| Reference Weight (kg/m) | 10 | 22 | 38 | 59 | 84 | 115 | 150 | 234 |
Notes:
- D fenders can also be installed as shown in Figure 1.
- Round holes are also available, as shown in Figures 2 & 3.
Attention please: The description may be different with the product, please contact us for quotation.
