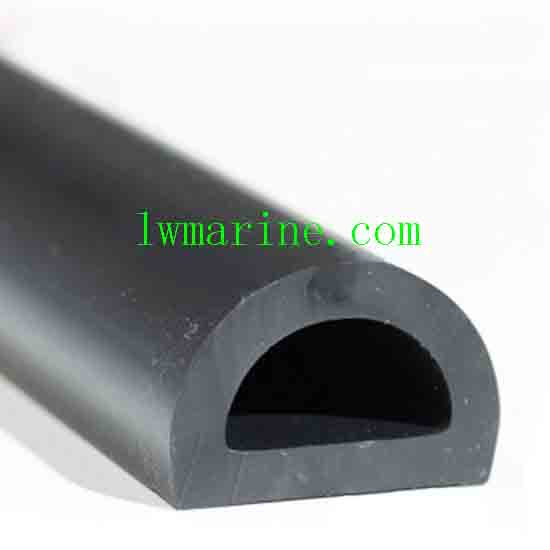

China D Shape Rubber Fender
Introducing our premium China D Shape Rubber Fender, crafted from high-quality natural rubber for superior durability and performance. This type of fender is specifically designed for frame dock and ship applications, thanks to its smaller bottom width that ensures a secure and efficient fit. With a high energy absorption capacity per ton, our D Shape Rubber Fender provides robust protection against impacts from vessels of all sizes and shapes. Although the reaction force is relatively high, it’s important to note that compressed rubber fenders typically have the lowest energy absorption for reaction force per unit.
Our D Shape Rubber Fender features an inner bore that can be either D-type or O-shape, offering flexibility in installation. The holes can be drilled from the top or side of the fender, making it suitable for tugboat applications and facilitating easy customization to meet your specific needs.
Pre-Curved, Chamfered, and Drilled for Easy Installation:
Our D Type Rubber Fenders can be pre-curved, chamfered, and drilled at a relatively low cost, ensuring a hassle-free installation process. They can also be cut to the required length, providing a tailored solution for your marine protection needs. These fenders serve as an excellent barrier against damage from fishing boats, tugs, barges, and other work craft, making them ideal for smaller quays and wharves.
Key Features:
- Moderate Reaction Force and High Energy Absorption: Our D Shape Rubber Fenders strike the perfect balance between reaction force and energy absorption, providing reliable protection without compromising on performance.
- Rigid Structure and Long Service Life: Constructed with a rigid structure, these fenders offer exceptional durability and a long service life, ensuring cost-effective protection for your marine assets.
- Easy Replacement: In the event of damage or wear, our D Shape Rubber Fenders can be easily replaced, minimizing downtime and maintenance costs.
Detailed Specifications Table:
| Model | L (mm) | A (mm) | D (mm) | B (mm) | H (mm) | h (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| D200H | 1000 | 200 | 55 | 28 | 200 | 30 | 37 |
| D200H | 1500 | 150 | 55 | 28 | 200 | 30 | 56 |
| D200H | 2000 | 250 | 55 | 28 | 200 | 30 | 74 |
| D300H | 900 | 150 | 65 | 32 | 300 | 40 | 80 |
| D300H | 1000 | 200 | 65 | 32 | 300 | 40 | 67 |
| D300H | 1500 | 150 | 65 | 32 | 300 | 40 | 105 |
| D300H | 2000 | 250 | 65 | 32 | 300 | 40 | 134 |
| (Duplicate entry removed for clarity) | |||||||
| D300H | 1500 | 150 | 65 | 32 | 300 | 40 | 120 |
| D400H | 1500 | 150 | 65 | 32 | 400 | 55 | 150 |
| D400H | 2000 | 200 | 65 | 32 | 400 | 55 | 200 |
| D500H | 1000 | 150 | 55 | 28 | 500 | 60 | 195 |
| D500H | 1500 | 150 | 55 | 28 | 500 | 60 | 298 |
| D500H | 2000 | 200 | 55 | 28 | 600 | 60 | 395 |
Note: Custom specifications are available upon request to meet your specific marine fendering needs.
Frequently Asked Questions (FAQs):
- What makes China D Shape Rubber Fenders suitable for frame dock and ship applications?
- Our D Shape Rubber Fenders are designed with a smaller bottom width, ensuring a secure and efficient fit for frame dock and ship applications. They provide high energy absorption per ton, offering robust protection against impacts.
- Can the inner bore of the D Shape Rubber Fender be customized?
- Yes, the inner bore of our D Shape Rubber Fender can be either D-type or O-shape, offering flexibility in installation to meet your specific needs.
- How easy is it to install D Type Rubber Fenders?
- Our D Type Rubber Fenders can be pre-curved, chamfered, and drilled at a relatively low cost, making installation straightforward and hassle-free. They can also be cut to the required length for a tailored solution.
- What is the service life of D Shape Rubber Fenders?
- Constructed with a rigid structure, our D Shape Rubber Fenders offer exceptional durability and a long service life, ensuring cost-effective protection for your marine assets over an extended period.
- Can D Shape Rubber Fenders be replaced easily in case of damage?
- Yes, in the event of damage or wear, our D Shape Rubber Fenders can be easily replaced, minimizing downtime and maintenance costs for your marine operations.
Please Note: The description might be incorrect, please contact us for confirmation.
