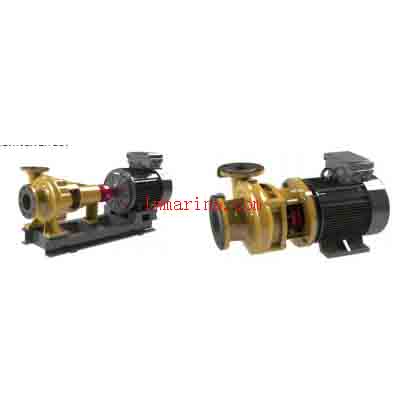

CSW Horizontal Centrifugal Pump
The CSW series marine horizontal centrifugal pump is a single-suction, single-stage centrifugal electric pump. It is designed for pumping clean water and liquids with physical and chemical properties similar to water. The maximum temperature of the liquid should not exceed 100°C, and it uses mechanical seals. It is suitable for pumping bilge water, main and auxiliary engine cooling water, and firefighting applications on ships.
Advantages of direct-coupled centrifugal pumps:
- compact size
- light weight
- simple structure
- easy installation
The CSW-D type is a standard centrifugal pump with a separate bearing housing and motor connected via a coupling. For larger diameter pumps, the CSW-D structure is generally used.
Advantages of non-directly connected centrifugal pumps:
- good stability
- long service life
- easy maintenance
Performance Range
- Capacity: 1.1~1740m³/h
- Head: 7~160m
Product Features:
- Wide range of types.
- The hydraulic model has been optimized by engineers, and the overall pump efficiency has reached world-class standards.
- Lightweight and compact.
- CSW uses a unique expansion sleeve coupling structure that can be configured with a standard electric motor.
- A self-priming device can be installed according to user requirements to meet the requirements for self-priming pumps.
Attention please: The description might be incorrect, please contact us for confirmation.
