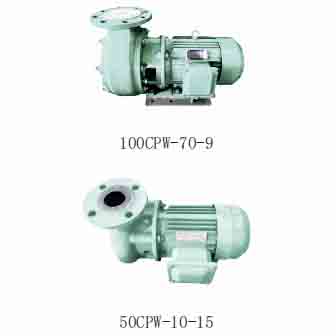

CPW SERIES MARINE SEWAGE PUMP
General Description
CPW Series Marine Sewage Pump are electrically driven, horizontal, single-channel impeller centrifugal discharge pumps (abbreviated as sewage pump). This series of pumps is suitable for conveying domestic sewage, industrial wastewater, oily water, fresh water, or seawater containing solid particles up to 1/3 of the pump’s diameter and fibrous materials up to 5 times the pump’s diameter in length, at temperatures below 85° C. They are the ideal pump for Sewage Treatment Plant.
Example: 50CPW-10-15.
Model Code Interpretation:
-
50: Inlet & Outlet Pipe Diameter (mm)
-
C: Pump Type
-
P: Sewage Pump
-
W: Rated Flow: 10m³/h
-
-10: Rated Flow: 10m³/h
-
-15: Head: 15m
-
(The diagram also indicates 0.15MPa Total Head.)
Main Technical Performance Parameter
| Model | Flow (m³/h) | Head (m) | Motor Power (KW) | Export Pipe Diameter (mm) | Import Pipe Diameter (mm) |
|---|---|---|---|---|---|
| 32CPW-5-15 | 5 | 15 | 1.1 | 32 | 32 |
| 50CPW-10-15 | 10 | 15 | 1.5 | 50 | 50 |
| 50CPW-10-20 | 10 | 20 | 2.2 | 50 | 50 |
| 50CPW-10-25 | 10 | 25 | 2.2 | 50 | 50 |
| 50CPW-10-30 | 10 | 30 | 3 | 50 | 50 |
| 50CPW-10-35 | 10 | 35 | 4 | 50 | 50 |
| 50CPW-15-30 | 15 | 30 | 4 | 50 | 50 |
| 50CPW-40-10 | 40 | 10 | 3 | 50 | 50 |
| 100CPW-70-9 | 70 | 9 | 4 | 100 | 100 |
| 100CPW-100-9 | 100 | 9 | 5.5 | 100 | 100 |
Note: The description may be different with the product, please contact us for quotation.
