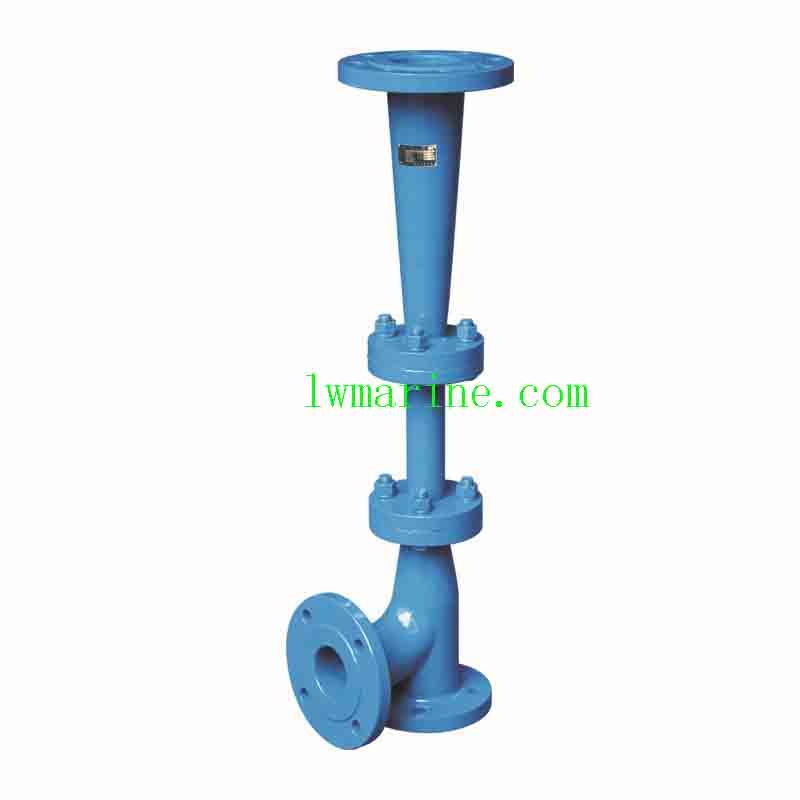

CPT Series Marine Ejector Pump – Versatile Fluid & Gas Handling Solutions for Marine Systems
Product Overview
The CPT Series Marine Ejector Pump is a right-angle configured jetting pump specifically engineered for shipboard drainage systems and multi-phase fluid handling applications. This versatile ejection system efficiently transports liquid-gas mixtures, powdered materials, and various media while operating effectively in vacuum conditions and deodorizing processes. Certified by CCS (China Classification Society), these robust pumps offer reliable performance when matched with appropriate system configurations for optimal operational efficiency.
Model Identification: CPT 10-0.7T
-
CP: Marine Ejector Pump Series
-
10: Flow Capacity (10 m³/h)
-
0.7: Operating Water Pressure (0.7 MPa)
-
T: Vertical/Perpendicular Type Configuration
Key Features & Benefits
-
Multi-Phase Handling: Efficiently transports liquids, gas-liquid mixtures, and powdered materials
-
Vacuum Operation: Suitable for vacuum system applications and deodorizing processes
-
Right-Angle Design: Compact perpendicular configuration saves valuable space
-
CCS Certified: Meets marine classification society standards for quality and safety
-
Minimal Maintenance: No moving parts ensures reliable operation with reduced maintenance
-
Versatile Applications: Adaptable to various marine drainage and fluid handling needs
-
Corrosion-Resistant Construction: Marine-grade materials withstand harsh environments
Technical Performance Data
Selected Performance Specifications:
| Model | Flow (m³/h) | Pressure (MPa) | Water Consumption (m³/h) | Suction Lift (m) | Delivery Height (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| CPT5-0.3T | 5 | 0.3 | 6 | 4 | 5 | 19.5 |
| CPT10-0.7T | 10 | 0.7 | 7 | 4 | 8 | 20 |
| CPT30-0.7T | 30 | 0.7 | 21 | 4 | 8 | 32 |
| CPT50-0.7T | 50 | 0.7 | 35 | 4 | 8 | 48 |
| CPT100-0.7T | 100 | 0.7 | 60 | 2 | 9 | 71.5 |
| CPT200-0.7T | 200 | 0.7 | 120 | 2 | 9 | 106 |
Complete technical specifications and performance curves available upon request
Typical Marine Applications
-
Shipboard drainage and bilge water ejection systems
-
Ballast water handling and transfer operations
-
Tank cleaning and stripping operations
-
Vacuum drainage and sewage evacuation
-
Deodorizing and ventilation system applications
-
Powder and granular material transfer
-
Gas-liquid mixture handling in processing systems
-
Emergency drainage and flood control systems
The description/sizes may be different with goods, please check with us when order.
