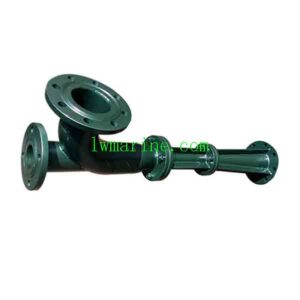

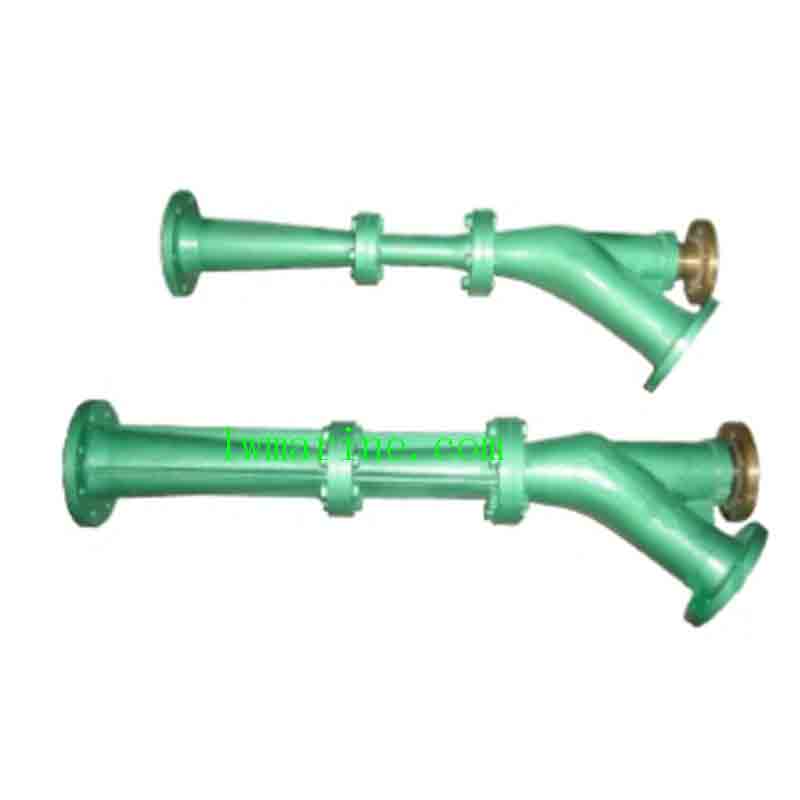

CP Series Marine Ejector Pump

CP Series Marine Ejector Pump

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

CP Series Marine Ejector Pumps – Compact Multi-Phase Fluid Transfer Solutions

Product Overview
The CP Series Marine Ejector Pump is a compact, angle-designed jet pump specifically engineered for marine drainage systems and multi-phase fluid handling applications. Utilizing innovative jetting water technology, this efficient system handles diverse media including liquids, gas-liquid mixtures, powders, and operates effectively in vacuum conditions and deodorizing processes. Available in both copper and cast iron constructions, these versatile pumps can be customized to match specific operational requirements and space constraints aboard vessels.

Model Identification: CP 10-0.7

  • CP: Marine Ejector Pump Series

  • 10: Flow Capacity (10 m³/h)

  • 0.7: Operating Water Pressure (0.7 MPa)

Key Features & Benefits

  • Compact Angle Design: Space-saving configuration ideal for marine installations

  • Multi-Phase Capability: Handles liquids, gases, mixtures, and powdered materials

  • Dual Material Options: Copper and cast iron constructions for different applications

  • Zero Moving Parts: Maintenance-free operation with exceptional reliability

  • Vacuum Operation: Suitable for vacuum systems and deodorizing applications

  • Easy Installation: Simplified integration with existing drainage systems

  • Corrosion Resistance: Marine-grade materials ensure long service life

Technical Performance Data

Copper Construction Models:

  • CP5-0.7: 5 m³/h @ 0.7MPa | 3.6 m³/h water consumption | 11 kg

  • CP10-0.7: 10 m³/h @ 0.7MPa | 7 m³/h water consumption | 14 kg

  • CP50-0.7: 50 m³/h @ 0.7MPa | 35 m³/h water consumption | 45 kg

  • CP100-0.7: 100 m³/h @ 0.7MPa | 60 m³/h water consumption | 90 kg

Cast Iron Construction Models:

  • CP5-0.3: 5 m³/h @ 0.3MPa | 6 m³/h water consumption | 15 kg

  • CP10-0.3: 10 m³/h @ 0.3MPa | 12 m³/h water consumption | 21 kg

  • CP50-0.3: 50 m³/h @ 0.3MPa | 55 m³/h water consumption | 47 kg

  • CP100-0.3: 100 m³/h @ 0.3MPa | 110 m³/h water consumption | 80 kg

Performance Characteristics

  • Flow Range: 5-200 m³/h

  • Pressure Range: 0.3-0.7 MPa

  • Suction Lift: 2-7 meters

  • Delivery Height: 5-11 meters

  • Water Consumption: 3.6-120 m³/h based on model

Typical Marine Applications

  • Marine vessel drainage and bilge systems

  • Ballast water transfer and management

  • Tank cleaning and stripping operations

  • Vacuum drainage and sewage evacuation

  • Powder and granular material transfer

  • Deodorizing and ventilation systems

  • Gas-liquid mixture handling

  • Emergency drainage solutions

The description/sizes may be different with goods, please check with us when order.
