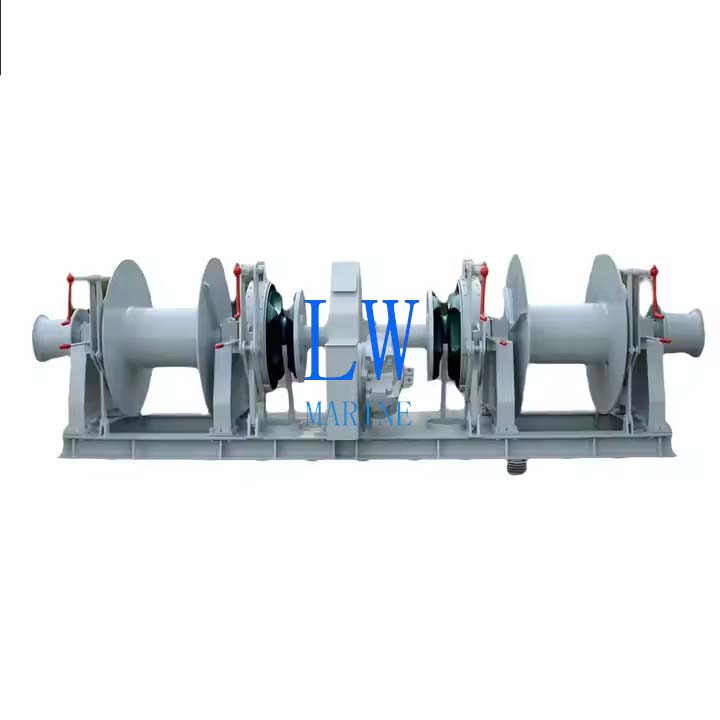

Combined Windlass Double Drums for Efficient Ship Anchoring and Tether Operations

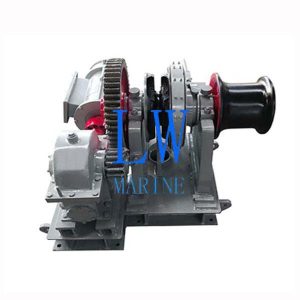

The Combined Windlass Double Drums is a robust and essential piece of equipment installed on the main deck of a ship’s first raft, specifically designed for secure anchoring and tether operations. This advanced marine windlass system is engineered to handle the rigorous demands of maritime environments, providing reliable performance in various sea conditions. The anchor windlass is primarily composed of a sturdy base, a durable bracket, an anchor sprocket, a reliable brake, a sprocket for smooth operation, a high-performance gearbox, and an electric control system (excluding manual windlasses). For electric windlasses, an electric motor is included, while hydraulic windlasses feature a hydraulic pumping station for optimal power transmission.
Key Components and Features:
- Base and Bracket: Constructed from high-strength materials to ensure stability and durability.
- Anchor Sprocket and Brake: Designed for precise and reliable anchoring operations, with a robust brake system for added safety.
- Sprocket and Gearbox: Engineered for smooth and efficient power transmission, reducing wear and tear.
- Electric Control System: Advanced electric control for precise operation (applicable to electric windlasses).
- Motor/Hydraulic Pumping Station: Electric motor for electric windlasses or hydraulic pumping station for hydraulic windlasses, providing powerful and reliable performance.
Technical Specifications:
| Chain Dia. (mm) | Working Load (KN) | Supporting Load (KN) | Working Speed (m/min) | Warping Load (KN) | Warping Speed (m/min) | Motor Power (KW) | Dimensions (mm) (A x B x C x D) | Weight (ton) |
|---|---|---|---|---|---|---|---|---|
| 19 | 15 | 95 | 9 | 8 | 8.5 | 7.5 | 600 x 1915 x 1360 x 1075 | 1.52 |
| 20.5 | 18 | 110 | 9 | 8 | 8.5 | 7.5 | 600 x 1915 x 1360 x 1075 | 1.52 |
| 22 | 21 | 126 | 9 | 8 | 8.5 | 7.5 | 600 x 1915 x 1360 x 1075 | 1.52 |
| 24 | 25/27 | 149/214 | 9 | 10 | 8.5/11 | 800 | 800 x 2295 x 1565 x 1200 | 2.46 |
| 26 | 29/32 | 175/250 | 9 | 10 | 8.5/11 | 800 | 800 x 2295 x 1565 x 1200 | 2.46 |
| 28 | 33/37 | 202/289 | 9 | 10 | 8.5/15 | 1000 | 1000 x 2440 x 1900 x 1400 | 3.28 |
| 30 | 38/43 | 261/331 | 9 | 30 | 8.5/15 | 1000 | 1000 x 2440 x 1900 x 1400 | 3.28 |
| 32 | 44/49 | 262/375 | 9 | 30 | 8.5/22 | 1000 | 1000 x 2750 x 2160 x 1500 | 4.25 |
| 34 | 49/55 | 295/422 | 9 | 30 | 8.5/22 | 1000 | 1000 x 2750 x 2160 x 1500 | 4.25 |
| 36 | 55/62 | 329/473 | 9 | 30 | 8.5/22 | 1000 | 1000 x 2750 x 2106 x 1500 | 4.25 |
| 38 | 61/69 | 365/522 | 9 | 30 | 8.5/30 | 1200 | 1200 x 3200 x 2420 x 1650 | 6.4 |
| 40 | 68/76 | 403/576 | 9 | 50 | 8.5/30 | 1200 | 1200 x 3200 x 2420 x 1650 | 5.1 |
| 42 | 75/84 | 442/630 | 9 | 50 | 8.5/30 | 1200 | 1200 x 3200 x 2420 x 1650 | 6.4 |
| 44 | 84/92 | 442/630 | 9 | 50 | 8.5/30 | 1200 | 1200 x 3200 x 2420 x 1650 | 6.4 |
FAQs:
Q1: What is the primary function of the Combined Windlass Double Drums?
A1: The Combined Windlass Double Drums is primarily used for secure anchoring and tether operations on ships, ensuring stability and safety in various maritime environments.
Q2: What are the key components of the anchor windlass system?
A2: The key components include the base, bracket, anchor sprocket, brake, sprocket, gearbox, and electric control system (for electric windlasses). Electric windlasses also feature an electric motor, while hydraulic windlasses have a hydraulic pumping station.
Q3: How do I choose the right chain diameter for my ship’s windlass?
A3: The chain diameter should be selected based on the working load and supporting load requirements of your ship. Refer to the technical specifications table to find the appropriate chain diameter for your specific needs.
Q4: Can the Combined Windlass Double Drums be customized to fit my ship’s dimensions?
A4: Yes, the windlass can be customized in terms of dimensions and specifications to meet the specific requirements of your ship, ensuring optimal performance and compatibility.
Q5: What is the difference between an electric windlass and a hydraulic windlass?
A5: An electric windlass uses an electric motor for power transmission, while a hydraulic windlass utilizes a hydraulic pumping station. Both types offer reliable performance, but the choice depends on your ship’s specific power requirements and operational preferences.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
