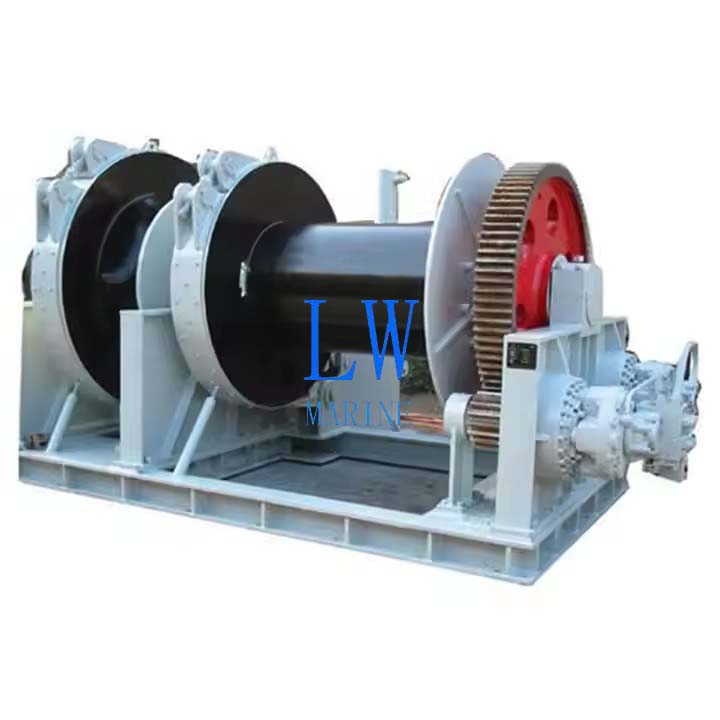

28mm Combined Hydraulic Windlass
Application
The 28mm Combined Hydraulic Windlass is a critical deck machinery system designed for professional marine operations. This heavy-duty equipment performs three essential functions: lifting, lowering, and secure anchor storage. Powered by an efficient hydraulic system, it delivers reliable performance even under maximum load conditions.
As a “combined” unit, it integrates two key components:
-
A gypsy wheel for precise anchor chain handling
-
A warping drum for mooring line operations
This dual-function design makes it ideal for commercial vessels requiring versatile deck equipment.
Material Specifications
-
Main structure: High-grade cast steel
-
Corrosion-resistant components: 316L stainless steel
Key Features & Advantages
-
Space-Optimized Design – Compact footprint with reinforced structural integrity
-
Dual Control System – Operates via both local controls and remote command
-
Maintenance Simplified – Engineered for easy installation and minimal upkeep
-
Marine Environment Ready – Superior corrosion protection ensures long service life
-
Professional Grade Performance – Smooth operation with industrial-grade finish
-
Manual Control Options – Features manual brake and clutch systems
-
Mission-Critical Reliability – Designed for fail-safe operation in all conditions
-
Internationally Certified – Compliant with IRS, BV, LR classification standards
-
Custom Engineering Available – Configurable to specific vessel requirements
| Specifications | |
| Chain diameter(AM2) | 28mm |
| Capacity | 160m |
| Power | 11KW |
| Speed | 1450r/min |
| Duty | 400V / 50Hz |
| Working load | 33.3KN |
| Overload | 50KN |
| Support load | 202KN |
| Speed | ≥9m/min |
| Drum load | 20KN |
| Drum speed | ≥12m/min |
| Support load | 60KN |
| Cable diameter | 40mm |
The description/sizes may be different with goods, please check with us when order.
