1. General

CLZ series marine or navy axial fan for marine use (vertical type), or simply CLZ type fans, are designed primarily for ventilation of the machinery room and each compartment. The connection can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapour vaporized from battery occur. Temperature of the air transferred can not exceed 50℃.

2. Construction

  • Type CLZ fan consists of the impeller, Casing, motor, guide cowl, conical diffuser, etc.

  • Casing is made of steel plate of leaving ample thickness, consisted of an inner cylinder, a shell and a down-stream guide vane. The shell is made in the shape of a cylindrical duct with flanges for connection of ducts at both ends. The inner cylinder and the shell is connected with the downstream guide vane used to guide the air flow.

  • Motor-Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are two types: ZZ-T-H Series DC marine motor (rated voltage 220V) and Y-H series AC marine motor (rated voltage 220V/380V).

  • Propeller is made of corroncresistant aluminum alloy (cast), being carefully balanced and mounted directly on the motor shaft extension.

  • The guide cowl installed on the inlet and the conical diffuser installed on the outlet are used to cut the vortex of the air flow, to ensure higher efficiency of the fan. Material: inflected plastics.

  • Finish—The fan are either printed and painted with marine paint.

Property Parameters Table
Seq. No. Type Flow rate m³/h Total pressure Pa Speed r/min Shaft power kW Motor Type Motor Power
1 CLZ1-2/3 1600 200 2900 0.142 ZZT-39/4; AH802ZT-P 0.2; 0.25
2 CLZ2-2/3 1600 350 2900 0.219 ZZT-39/4; AH802ZT-P; Aj16-4ZT2-P 0.4; 0.55
3 CLZ3-2/3 2500 300 2900 0.292 ZZT-39/4; AJ16-4ZT2-P; A1-6K2ZT2-H 0.4; 0.55
4 CLZ4-2/3 2500 500 2900 0.512 ZZT-39/4; Y80-2H; ZZT-39/4 0.8; 0.75; 0.8
5 CLZ5-2/3 4000 400 2900 0.63 Y80-2H; ZZT-39/4; Y80-2H 0.75; 0.8; 0.75
6 CLZ6-2/3 4000 700 2900 1.12 ZZT-39/4; Y90S-2H; ZZT-39/4 1.5; 1.5; 2.2
7 CLZ7-2/3 6000 750 2900 1.53 Y90L-2H; Y90-2H; ZZT-39/4 2.2; 2.2; 3
8 CLZ8-2/3 9000 800 2900 2.6 Y100L-2H; ZZT-39/4; ZZT-39/4; Y132S1-2-H 3; 3; 3; 3
9 CLZ9-2/3 12000 500 1450 2.1 Y100L-4; ZZT-39/4 3; 3
10 CLZ10-2/3 12000 900 1450 3.8 Y132S-4H; Y132M-4H 5.5; 5.5
11 CLZ11-2/3 16000 500 1450 3.3 ZZT-54/4; Y112M-4; ZZT-54/4 4; 4; 7.5
12 CLZ12-2/3 16000 1100 1450 6 Y132M-4H; ZZT-54/4; Y132M-4H 7.5; 7.5; 7.5
13 CLZ13-2/3 25000 600 1450 5.2 ZZT-54/4; Y132M-4H; ZZT-54/4 7.5; 7.5; 13
14 CLZ14-2/3 25000 1100 1450 10.2 ZZT-54/4; Y160L-4; Y160L-4 13; 15; 15

Remarks: The performance parameters shown in the table are based on the air conditions of absolute pressure 101325Pa, temperature 20℃, relative humidity 50%, specific gravity 1.2kg/m³, and standard speed shown in the table.

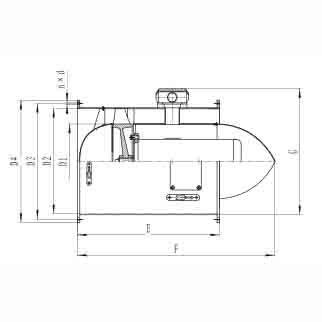

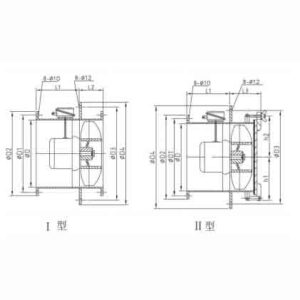

Dimensions Table
Type Motor D1 D2 D3 D4 E F G n×d Weight kg
CLZ1-2/3 ZZT-39/4; AH802ZT-P 0.2 162 280 320 350 160 587 437 9×Φ12 45; 26
CLZ2-2/3 ZZT-39/4; AJ16-4ZT2-P 0.4 180 260 305 330 250 430 400 9×Φ12 52; 52
CLZ3-2/3 ZZT-39/4; AJ16-4ZT2-P; A1-6K2ZT2-H 0.4; 0.55 162 280 320 360 190 430 400 9×Φ12 58; 53; 57
CLZ4-2/3 ZZT-39/4; Y80-2H; ZZT-39/4 0.8; 0.75; 0.8 195 320 360 390 250 500 330 9×Φ12 58; 51; 51
CLZ5-2/3 Y80-2H; ZZT-39/4; Y80-2H 0.75; 0.8; 0.75 195 350 390 420 310 510 310 9×Φ12 53; 53; 53
CLZ6-2/3 ZZT-39/4; Y90S-2H; ZZT-39/4 1.5; 1.5; 2.2 280 420 460 490 500 660 880 9×Φ12 144; 77; 144
CLZ7-2/3 Y90L-2H; Y90-2H; ZZT-39/4 2.2; 2.2; 3 280 440 480 510 600 620 920 9×Φ12 88; 92; 84
CLZ8-2/3 Y100L-2H; ZZT-39/4; ZZT-39/4; Y132S1-2-H 3; 3; 3; 3 280 500 560 590 700 620 940 11×Φ12 182; 109; 112; 112
CLZ9-2/3 Y100L-4; ZZT-39/4 3 410 640 700 732 500 495 776 9×Φ12 374; 195
CLZ10-2/3 Y132S-4H; Y132M-4H 5.5; 5.5 410 640 700 732 1166 1533 801 9×Φ12 318; 318
CLZ11-2/3 ZZT-54/4; Y112M-4; ZZT-54/4 4; 4; 7.5 410 700 760 792 900 505 865 9×Φ12 358; 190; 358
CLZ12-2/3 Y132M-4H; ZZT-54/4; Y132M-4H 7.5; 7.5; 7.5 410 700 760 792 1120 800 1080 11×Φ12 234; 348; 234
CLZ13-2/3 ZZT-54/4; Y132M-4H; ZZT-54/4 7.5; 7.5; 13 440 780 836 870 530 1045 930 9×Φ12 264; 248; 248
CLZ14-2/3 ZZT-54/4; Y160L-4; Y160L-4 13; 15; 15 440 780 836 870 1400 1016 1600 11×Φ12 700; 459; 459

Remarks: weight(W)shown in the table including fan and motor. (standard packing weight)

Note: The description may be different with the product, please contact us for quotation.
