CLASS 300 Y-STRAINER

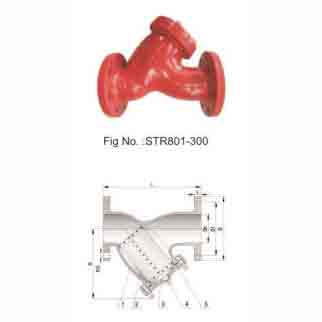

Fig No.: STR801-300
TECHNICAL REQUIREMENT:
- Face to Face dimensions: Conform to EN558-1 list 1
- Flange dimensions: Conform to ASME B16.1 CLASS 125
- Sheet test pressure: 600psi(4.14MPa)
NOTES:
- DN50 – DN300 meshes Φ1.5; DN350 – DN600 meshes Φ3.0.
- It can be manufactured according to customer’s requirement.
MATERIALS OF PARTS
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A536 65-45-12 |
| 2 | SCREEN | SS304 |
| 3 | BONNET | ASTM A536 65-45-12 |
| 4 | PLUG | MALLEABLE CAST IRON |
| 5 | BONNET GASKET | GRAPHITE +08F |
DIMENSIONS DATA (MM)
| NPS | 2.5″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ |
|---|---|---|---|---|---|---|---|---|
| Dn | 64 | 76 | 102 | 127 | 152 | 203 | 254 | 305 |
| L | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 |
| D | 178 | 190.5 | 228.6 | 254 | 279.4 | 343 | 406.4 | 482.6 |
| D1 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 362 | 431.8 |
| b | 17.5 | 19.1 | 24 | 24 | 25.4 | 28.6 | 30.2 | 31.8 |
| n-d | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 |
| H | 186.5 | 203 | 250 | 288 | 325 | 405 | 496 | 574 |
Attention please: The description might be incorrect, please contact us for confirmation.
