CHINA PILOT CHAIRS

HA – B – 01

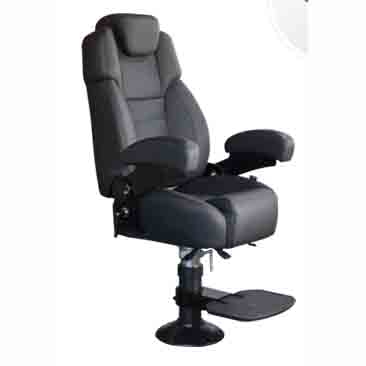

The Starfish Voyager Seat is designed for palatial comfort with a touch of elegance. Each Voyager Seat utilises deluxe high – density foam cushions covered in premium grade vinyl. The backrest includes an overlapping style headrest. The backrest, seat rest and armrests are all adjustable providing complete customisation, immersing you in luxurious comfort. The back rest includes and overlapping style headrest. An optional, floor mounting slide is available to optimise access and seating position.

Starfish Voyager Pilot Seats

Part No.	Description	Colour	Vinyl Swatch
HA – B – 01	Voyager Pilot Seat Only	Black	016
HA – D – 01.02	Air Ride Pedestal & Footrest Only – Suits Voyager Seat
HA – XB – 201823	Shock Mitigating Seat Mount Pedestal (8″ Suspension Travel) Height adjustment Fore/aft adjustment Integrated footrest with adjustable height
HA – P – 01	Stainless Steel Seat Slide Pilot Floor Mount Relax 600mm Travel

Features:

Deluxe, high – density foam padding providing the ultimate comfort.
Premium quality UV stabilised upholstery.
Robust reinforced frame.
Adjustable backrest, head rest, seat rest and armrests.
High back and contoured sides offer excellent support and comfort.
Height adjustable Air Ride Pedestal incorporating full – length foldable footrest.
Pedestal top, fore and aft seat slide with 360° swivel.

Technical Specifications:

Seat:
- Adjustable Head Rest
- Adjustable Height: 140mm
- Adjustable Armrest: 0° to 100°
- Adjustable Backrest: 90° to 115°
- Overall Dimensions: L 620mm x W 700mm x H 1610mm
- Adjustable Height Range: 480mm to 680mm
Pedestal:
- Base: φ307mm & Shaft φ100mm
Suspension Air Ride:
- Travel: 600mm
Footrest:
- Adjustable Angle Dimensions: L 285mm W 365mm
Slide:
- Travel Dimensions: 480mm x 1050mm
Frame: Carbon Steel/304G Stainless Steel
Upholstery: Marine Grade Vinyl
Weight: 51 Kg
