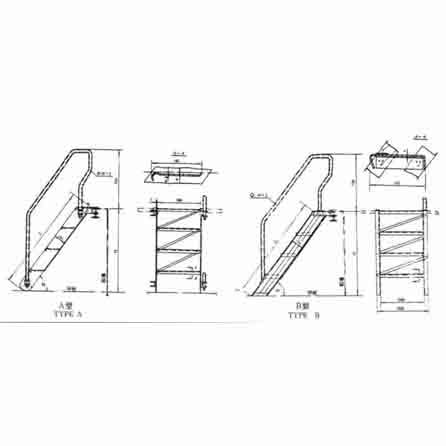

Bulwark Ladder
CB*3122-82
This product conforms to JIS2614-1976. The surface of aluminium is to be anodized.
Technical Specification Table
| Type | Name | H (mm) | I (mm) | Weight (kg) |
|---|---|---|---|---|
| A | Steel bulwark ladder | 1100 | 1320 | 55 |
| 1200 | 1450 | 57 | ||
| B | Aluminium bulwark ladder | 1100 | 1340 | 28 |
| 1200 | 1470 | 29 |
Marking Example
A steel bulwark ladder with a height of 1100mm:
Bulwark Ladder A1100 CB 3122-82
Ladder for Draft Measuring
CBM 2049-82
This product is a special ladder used for reading ship’s draft and the surface of aluminium is to be anodized.
Notes
The length H is determined by the user. The main size H×B×b is 8130×347×300 for the draft-reading ladder.
Marking Example
A draft-reading ladder with main dimensions 8130×350×300:
Ladder for Draft Reading 8130×350×300 CBM 2049-82
Attention please: The description might be incorrect, please contact us for confirmation.
