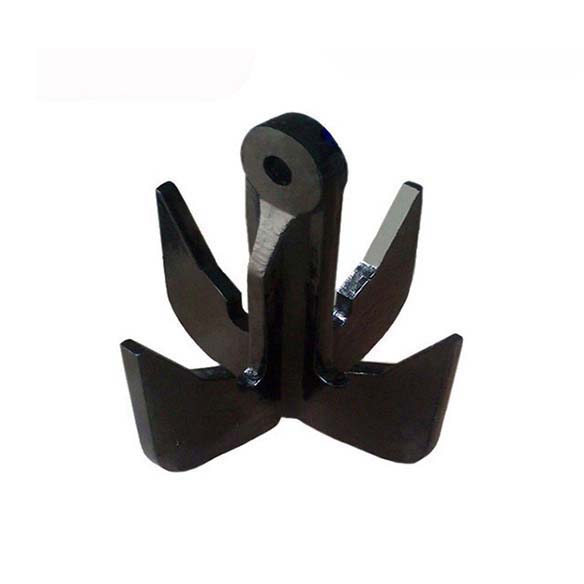

Chain Grapnel Hook – The Professional Anchor Recovery Solution
Engineered for Heavy-Duty Seabed Retrieval Operations
Chain Grapnel Hook Key Features & Benefits:
✔ High-Capacity Recovery – Rated for 100T to 250T working loads
✔ Secure Chain Engagement – Specialized fluke design grips chains up to 4″ diameter
✔ Dual Connection Points – Head eye for trawl wire + tail eye for emergency retrieval
✔ Marine-Grade Construction – Cast steel body with corrosion-resistant coating
✔ Certified Reliability – Meets CCS, ABS, BV, LR, NK, RINA standards
Proof Test | S.W.L | Weight | Dimensions (mm) | |||||
(Ton) | (Ton) | (kg) | A | B | C | D | E | F |
150 | 100 | 1350 | 1176 | 1373 | 76 | 99 | 136 | 108 |
270 | 200 | 1850 | 1821 | 1498 | 89 | 114 | 130 | 108 |
350 | 250 | 2628 | 1994 | 1675 | 100 | 144 | 189 | 128 |
The description/sizes may be different with goods, please check with us when order.
