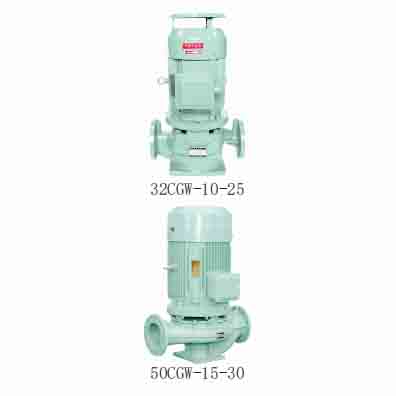

CGW SERIES MARINE SEWAGE PUMP
General Description
The CGW series Marine Sewage Pump is an electric vertical pipeline-type single-channel impeller centrifugal discharge pump (abbreviated as Sewage Pump). This series of pump is suitable for transporting sewage, industrial wastewater, oil-contaminated water, fresh water, or seawater containing solid particles with a diameter up to one-third of the pump’s caliber and fibrous materials with a length up to five times the pump’s caliber, at temperatures below 85° C. It is the ideal matching pump for Sewage Treatment Plant.
Example: 25CGW-10-15
Model Code Interpretation:
-
25: Inlet/Outlet Pipe Diameter (mm)
-
C: Pump Type
-
G: Sewage Pump
-
W: Rated Flow (10m³/h)
-
-10: Rated Flow: 10m³/h
-
-15: Head: 15m
-
(Note: The diagram also indicates 0.15MPa Total Head and 85°C Maximum Media Temperature.)
Main Technical Performance Parameter
| Model | Flow (m³/h) | Head (m) | Motor Power (KW) | Outlet Pipe Diameter (mm) | Import Pipe Diameter (mm) |
|---|---|---|---|---|---|
| 20CGW-3-6 | 3 | 6 | 0.37 | 20 | 20 |
| 25CGW-5-10 | 5 | 10 | 0.55 | 25 | 25 |
| 25CGW-10-15 | 10 | 15 | 1.1 | 25 | 25 |
| 32CGW-10-20 | 10 | 20 | 1.5 | 32 | 32 |
| 32CGW-3-30 | 3 | 30 | 2.2 | 32 | 40 |
| 32CGW-5-30 | 5 | 30 | 2.2 | 32 | 40 |
| 40CGW-15-20 | 15 | 20 | 2.2 | 40 | 40 |
| 40CGW-20-20 | 20 | 20 | 2.2 | 40 | 40 |
| 50CGW-10-30 | 10 | 30 | 3 | 50 | 50 |
| 50CGW-10-32 | 10 | 32 | 3 | 50 | 50 |
| 50CGW-15-30 | 15 | 30 | 4 | 50 | 50 |
Note: The description may be different with the product, please contact us for quotation.
