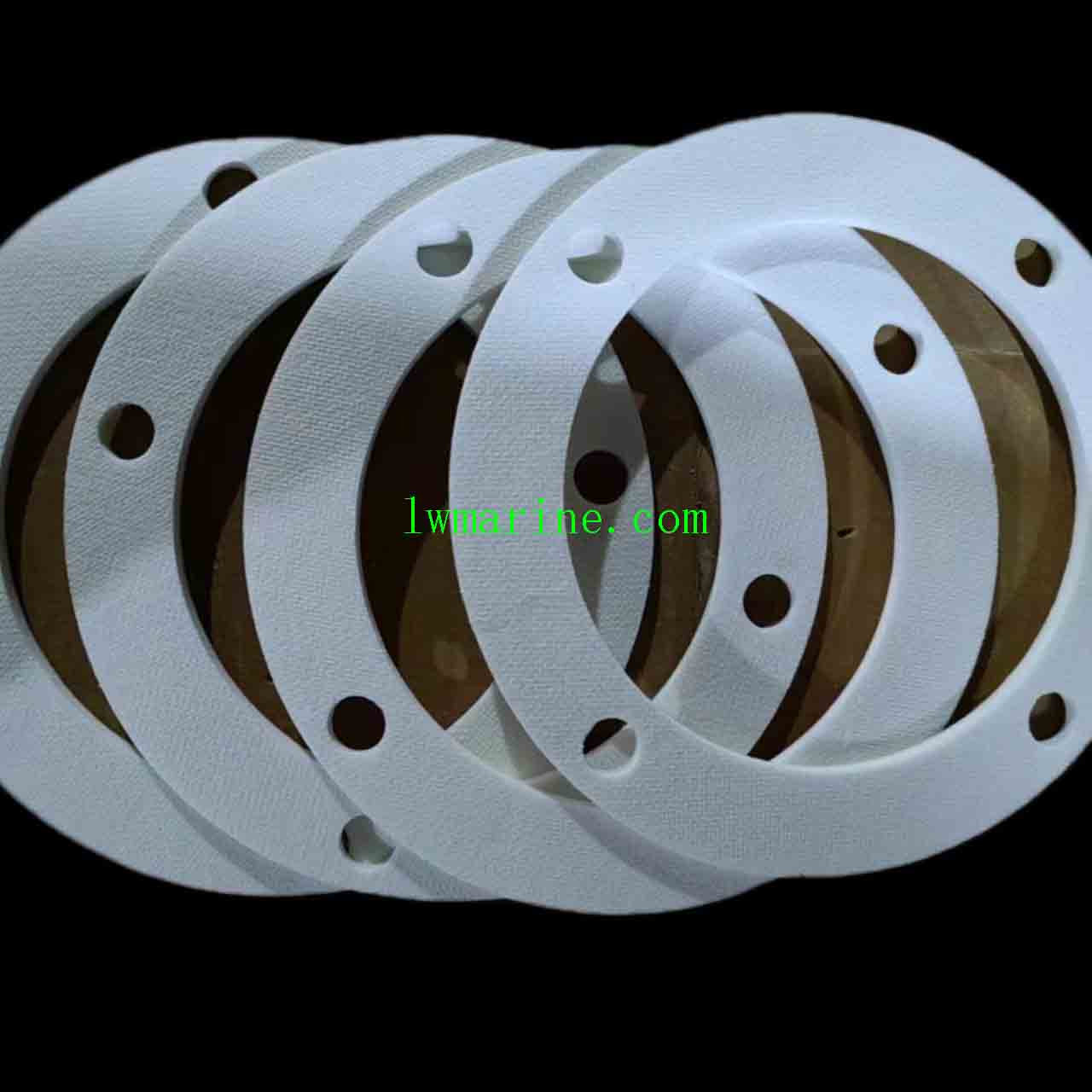

High-Temperature Ceramic Fiber Gasket | 1450°C Direct Flame Contact & Corrosion Resistance
Product Overview
Our ceramic fiber gasket is an industrial-grade, high-temperature sealing solution designed for extreme heat environments up to 1450°C. Engineered for direct flame exposure and superior corrosion resistance, this flexible yet durable gasket delivers reliable performance in demanding applications such as industrial kilns, furnaces, and high-temperature equipment. With low thermal conductivity and minimal heat storage, it ensures energy efficiency and long-term stability under intense thermal cycling.
Key Advantages
-
Extreme Temperature Resistance: Withstands continuous temperatures from 1260°C to 1450°C, depending on material grade (Standard, High-Alumina, Zirconium-containing).
-
Excellent Thermal Insulation: Low thermal conductivity (0.055–0.180 W/m·K) reduces heat loss and improves energy efficiency.
-
Direct Flame Contact Suitable: Ideal for sealing in environments with direct flame exposure.
-
High Compressive Strength: Non-brittle structure ensures durability under mechanical stress and vibration.
-
Customizable Shapes & Sizes: Precision-cut to match customer specifications, including complex geometries.
-
Lightweight & Low Heat Storage: Enhances operational efficiency and safety during handling.
Technical Parameters
| Property | Standard Type | High-Alumina Type | Zirconium-containing |
|---|---|---|---|
| Max Service Temp | 1260°C | 1360°C | 1450°C |
| Thermal Conductivity | |||
| 200°C | 0.055–0.065 | 0.060–0.070 | Customized |
| 400°C | 0.110–0.120 | 0.105–0.125 | Customized |
| 600°C | 0.160–0.170 | 0.170–0.180 | Customized |
| Bulk Density | 180–220 kg/m³ | 180–220 kg/m³ | 180–220 kg/m³ |
Applications
-
Industrial Kiln & Furnace Sealing: Observation ports, thermometer inserts, burner blocks, door seals.
-
Metal Processing: Lining for non-ferrous metal melting channels and casting cap insulation.
-
High-Temperature Equipment: Gaskets for expansion joints, boiler seals, heat treatment systems.
-
Consumer & Electronics: Insulation pads for electric kettles, ovens, and microprocessor motherboards.
-
Specialized Glass Manufacturing: Hot-bending glass mold liners and fire-resistant barriers.
The description/sizes may be different with goods, please check with us when order.
