Centrifugal Pump for Marine

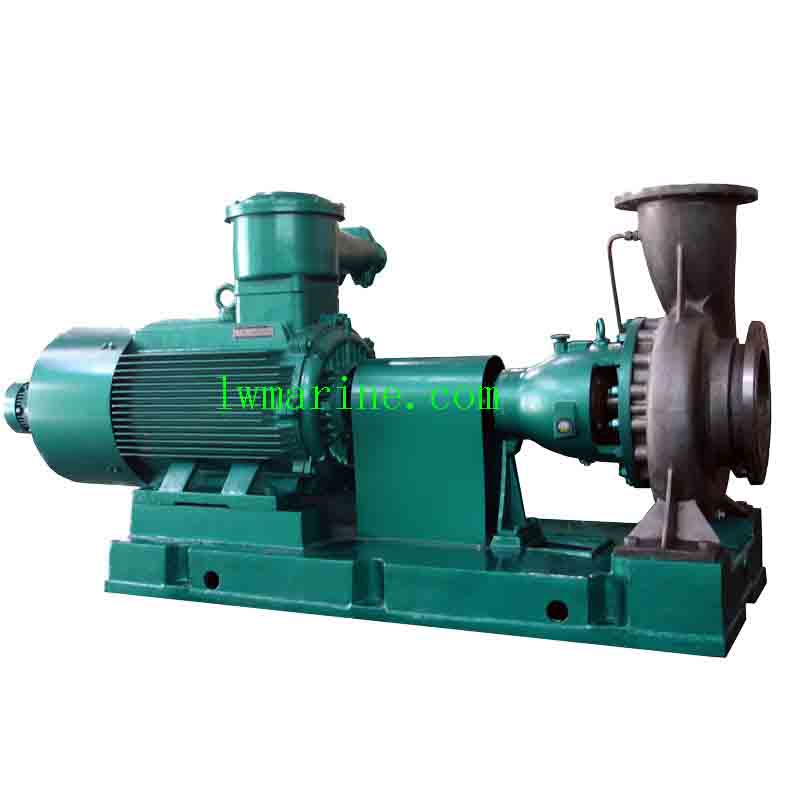

IS Series Horizontal Single-Stage Centrifugal Pump for Marine

Product Overview
The IS Series Horizontal Single-Stage Centrifugal Pump for Marine is an axial suction pump designed for reliable transfer of clear water and other liquids with similar physical and chemical properties. Operating at temperatures up to 100°C and maximum working pressures of 1.6MPa, these pumps are engineered for industrial, municipal, and marine applications. Ideal for shipboard water supply and drainage systems, industrial cooling circuits, urban water infrastructure, and agricultural irrigation and drainage applications.

Model Identification: IS, CIS(R), CIH80-65-160A

IS: International standard centrifugal pump series
CIS: Marine-grade centrifugal pump variant
R: Hot water version (up to 100°C)
CIH: Marine horizontal chemical process pump
80: Inlet diameter (mm)
65: Outlet diameter (mm)
160: Impeller nominal diameter (mm)
A(B, C): First (second, third) stage impeller trimming

Construction Materials

Pump Casing: Cast Iron / Bronze (marine grade)
Pump Cover: Cast Iron
Impeller: Bronze (corrosion-resistant)
Pump Shaft: Stainless Steel (marine environment rated)
Mechanical Seal: Hard Aluminum Alloy (for extended service life)

Key Features & Benefits

Axial Suction Design: Ensures smooth flow characteristics and reduced turbulence
Marine-Grade Construction: Corrosion-resistant materials suitable for seawater applications
ISO Standard Compliance: Interchangeable with international centrifugal pump specifications
Multi-Application Versatility: Suitable for industrial, municipal, and marine environments
Temperature Resistant: Handles fluids up to 100°C with standard mechanical seals
Pressure Rated: Maximum working pressure 1.6MPa for demanding applications
