Cell Fender

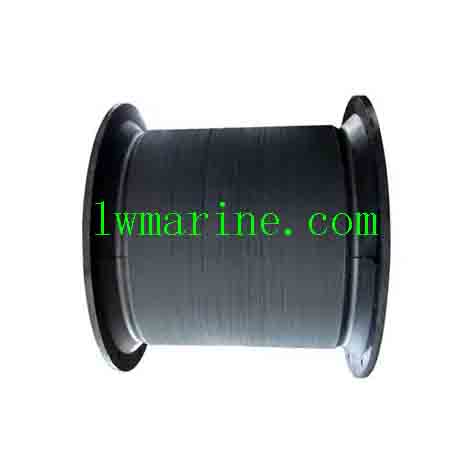

Super Cell Rubber Fender

Our Super Cell Rubber Fender stands out as a premier marine protection solution, having earned approval from the BV PIANC (International Navigation Association) standards, ensuring its reliability and safety in demanding maritime environments. This advanced fender system is engineered for high effectiveness and economic efficiency, making it an ideal choice for various berthing applications. Its exceptional resistance to shear forces guarantees long-lasting performance, even under extreme conditions.

Key Features and Benefits of Super Cell Rubber Fender:

1. Superior Energy Absorption Efficiency (E/R x H > 15%):
   The effectiveness of a fender is quantified by its Energy Absorption Ratio (E/R) multiplied by Height (H). Our Super Cell Rubber Fender boasts an E/R x H value of 0.450, which is 15% higher than the standard 0.383 for ordinary cell fenders. This enhanced efficiency allows for more economical designs, reducing overall costs without compromising on performance.
2. Enhanced Stress Dispersion via FEM Analysis:
   Utilizing the Finite Element Method (FEM), we’ve optimized the Super Cell Rubber Fender to disperse stress more evenly across its structure, particularly at critical bucking points and the edge of the leg. This wider stress dispersion enables an increase in design deflection from 47.5% to 52.5%, resulting in superior performance and durability. The fender’s ability to withstand greater deflections without failure makes it a robust choice for demanding marine applications.
3. Excellent Angular Berthing Performance:
   When selecting a fendering system for large vessel berthing, angular performance is crucial. Our Super Cell Rubber Fender excels in this area, providing reliable protection even during angular berthing maneuvers. Its design ensures consistent performance, minimizing the risk of damage to both vessels and berthing structures.

Main Applications of Super Cell Rubber Fender:

• Fast Ferries and Catamaran Berths
• Conventional Rope Berths
• Oil, Liquid, and Bulk Terminals
• Multi-User Facilities
• Monopile and Elastic Dolphin Structures
• Open Pile Jetties and Wharves
• Locations with Extreme Tidal Ranges
• Lead-In Structures and Turning Areas

Technical Specifications:

Frequently Asked Questions (FAQs):

1. What makes the Super Cell Rubber Fender different from ordinary cell fenders?
   The Super Cell Rubber Fender offers superior energy absorption efficiency (E/R x H), enhanced stress dispersion, and excellent angular berthing performance compared to ordinary cell fenders, making it more durable and cost-effective.
2. How does the FEM analysis contribute to the fender’s performance?
   The FEM analysis helps optimize the fender’s design by evenly distributing stress across its structure, allowing for increased deflection and improved overall performance and durability.
3. Can the Super Cell Rubber Fender be used in locations with extreme tidal ranges?
   Yes, the Super Cell Rubber Fender is suitable for locations with very large tidal ranges, providing reliable protection in varying water levels.
4. What types of vessels can benefit from using the Super Cell Rubber Fender?
   The Super Cell Rubber Fender is ideal for fast ferries, catamarans, large oil tankers, liquid cargo vessels, bulk carriers, and other large vessels requiring robust berthing protection.
5. How do I choose the right model of Super Cell Rubber Fender for my application?
   Select the appropriate model based on your specific berthing requirements, including vessel size, expected loads, and environmental conditions. Refer to our technical specifications table for detailed dimensions and weights to make an informed decision.
