JIS F7350 Marine Cast Steel Angle Globe Valve | JIS B2220 10K Flange Valve for Heavy-Duty Marine Applications
Product Overview

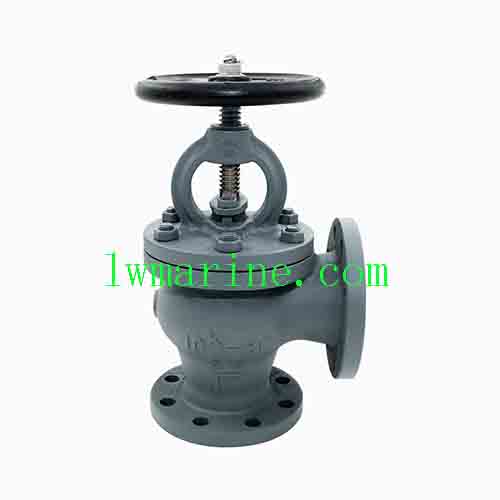

The Marine Cast Steel Angle Globe Valve is a heavy-duty flow control solution engineered for demanding shipbuilding, vessel repair, and offshore platform applications. Manufactured to JIS F7400 standards with premium cast steel body and stainless steel trim, this angle pattern globe valve ensures reliable shut-off performance in high-pressure marine piping systems. Featuring JIS B2220 standard flanges for seamless integration, it delivers exceptional durability and corrosion resistance in seawater, steam, and oil applications.
Key Features & Benefits
-
JIS F7400 & B2220 Compliance: Manufactured to Japanese Industrial Standards for guaranteed quality and system compatibility
-
Heavy-Duty Cast Steel Construction: Superior strength and pressure handling capability for marine environments
-
Stainless Steel Trim Package: Exceptional corrosion resistance for seat, disc, and stem components
-
10K Pressure Rating: Suitable for high-pressure marine and offshore piping systems
-
Angle Pattern Design: Allows directional change in piping while saving space in engine rooms
-
Wide Size Range: Available from DN150 to DN700 to accommodate various flow requirements
-
Global Export Expertise: Backed by 10 years of international valve manufacturing and export experience
-
Material Customization: Valve materials can be selected according to specific customer requirements
-
Pneumatic Actuation Options: Available with various pneumatic actuation systems for automated operation
Material Specification
-
Body: Cast Steel
-
Seat: Stainless Steel
-
Disc: Stainless Steel
-
Stem: Stainless Steel
Technical Specifications
-
Standard: JIS F7350
-
Flange Standard: JIS B2220
-
Nominal Diameter: DN150-DN700
-
Pressure Rating: 10K
-
Pattern: Angle Type
-
Type: Globe Valve
-
Operation: Manual (Pneumatic actuation available)
Main Dimensions (mm)
| Model | L1 | L2 | D | C | No. | h | t | H | D2 |
|---|---|---|---|---|---|---|---|---|---|
| 7350 10K150 | 205 | – | 280 | 240 | 8 | 23 | 22 | 400 | 315 |
| 7350 10K200 | 230 | – | 330 | 290 | 12 | 23 | 22 | 480 | 355 |
| 7350 10K250 | 290 | – | 400 | 355 | 12 | 25 | 24 | 535 | 400 |
| 7350 10K300 | 320 | – | 445 | 400 | 16 | 25 | 24 | 610 | 450 |
| 7350 10K350 | 360 | 320 | 490 | 445 | 16 | 25 | 26 | 1010 | 500 |
| 7350 10K400 | 400 | 350 | 560 | 510 | 16 | 27 | 28 | 1130 | 600 |
| 7350 10K450 | 450 | 380 | 620 | 565 | 20 | 27 | 30 | 1250 | 710 |
| 7350 10K500 | 500 | 430 | 675 | 620 | 20 | 33 | 30 | 1380 | 800 |
| 7350 10K550 | 550 | 460 | 745 | 680 | 24 | 33 | 32 | 1505 | 900 |
| 7350 10K600 | 610 | 500 | 795 | 730 | 24 | 33 | 32 | 1630 | 900 |
| 7350 10K650 | 660 | 540 | 845 | 780 | 24 | 33 | 34 | 1765 | 1000 |
| 7350 10K700 | 710 | 570 | 905 | 840 | 24 | 33 | 34 | 1890 | 1000 |
The description/sizes may be different with goods, please check with us when order.
