Cast Iron Angle Valve 5k

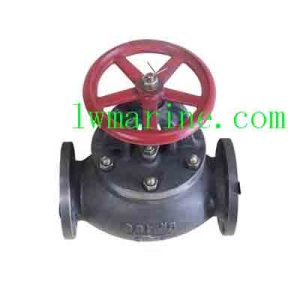

Marine Cast Iron Angle Check Valve 5K – JIS F7322C Compliant

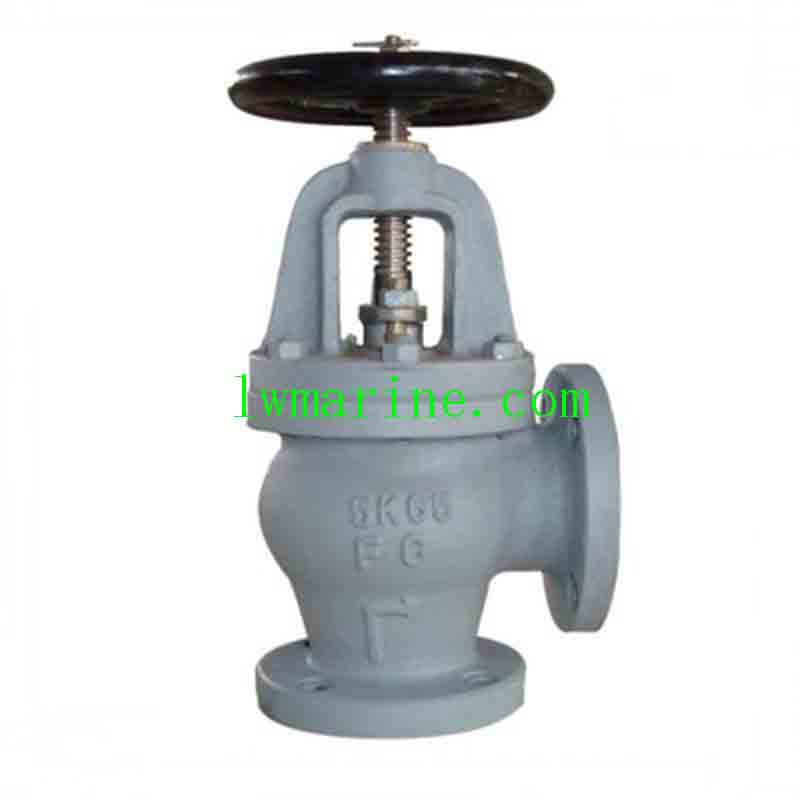

Introducing our Cast Iron Angle Valve 5k, designed in strict accordance with JIS F7322C-1996 standards. This robust valve serves as an economical alternative to costly bronze valves, particularly suitable for small-sized pipe systems in marine applications. Crafted from high-grade ductile iron, it offers exceptional durability and performance, ensuring long-lasting service even in demanding maritime environments.

Key Features:

• Cost-Effective Solution: Replaces expensive bronze valves without compromising on quality or performance.
• Ductile Iron Construction: Provides superior strength and vibration damping capabilities.
• JIS F7322C Compliance: Adheres to stringent design and test standards for marine applications.
• Hydraulic Test Pressure: Body tested at 1.05Mpa, Seat at 0.77Mpa, ensuring reliability under pressure.
• Flange Standard: JIS B2220 -5K, facilitating easy integration with existing pipe systems.
• Versatile Material Options: Seat and stem available in SUS (SCS2)/Bronze (BC6) and SUS (SCS2)/Brass (C3771BD) respectively, catering to diverse operational needs.

Technical Specifications:

• Design Standard: JIS F7322C-1996
• Test Standard: JIS 7400-1996
• Material:
  • Body/Bonnet: Ductile Iron FCD450
  • Seat: SUS (SCS2)/Bronze (BC6)
  • Stem: SUS (SCS2)/Brass (C3771BD)

Main Sizes (mm) & Weight:

Enhanced Material Specifications for Key Components:

• Body & Bonnet: Cast Iron (FC200) – High strength and vibration damping properties.
• Handwheel: Cast Iron (FC200) – Ensures durability for prolonged use.
• Disc & Seat: Bronze (C83600)/Stainless Steel (SUS304) – Offers excellent wear and corrosion resistance.
• Stem Assembly: Bronze (C93700)/Stainless Steel (SUS304) – Guarantees smooth operation and longevity.
• Fasteners: Steel (SS400)/Brass (C3604) – Maintains structural integrity under various conditions.
• Sealing System: Non-asbestos fiber/Graphite – Temperature-resistant, ensuring reliable sealing.
