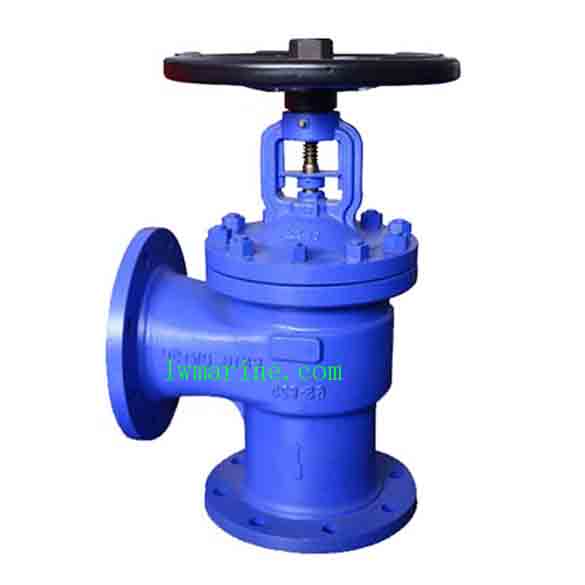

Marine DIN Cast Iron Angle Globe Valve – PN16 Rated 90-Degree Flow Control Solution
Product Overview
Our Marine DIN Cast Iron Angle Globe Valve is a high-performance flow control solution specifically designed for marine steam, water, oil, and gas applications. Featuring a space-saving 90-degree angle design, this robust valve combines cast iron durability with stainless steel internals for exceptional service life in demanding marine environments. With PN16 pressure rating and comprehensive size range from DN15 to DN300, it delivers reliable performance while optimizing installation space in vessel engine rooms and piping systems.
Key Features & Benefits
✔ Superior Material Construction
-
Body & Bonnet: High-grade cast iron for durability and pressure containment
-
Disc & Stem: Stainless steel components for corrosion resistance and reliable operation
-
Sealing System: Graphite gland packing and bonnet gasket for leak-free performance
-
Custom Materials: Available in cast steel, SS304, SS316L upon request
✔ Space-Saving Angle Design
-
90-degree configuration reduces piping complexity
-
Ideal for confined marine engine room spaces
-
Simplified installation and maintenance access
✔ High-Performance Specifications
-
Pressure Rating: PN16 for marine applications
-
Size Range: DN15 to DN300 comprehensive coverage
-
Temperature Range: Suitable for steam, hot/cold water services
-
Media Compatibility: Oil, air, gas, and various marine fluids
✔ Quality Assurance
-
DIN standard compliance for international acceptance
-
Excellent manufacturing quality with aesthetic design
-
Sample availability for quality verification
-
Custom manufacturing options available
Technical Specifications: DIN Angle Globe Valve Series
Small Size Series (DN15-DN40):
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 75 52 46 | 15 | 95 | 90 | 168 | 100 | 3.1 |
| 75 52 47 | 20 | 105 | 95 | 166 | 100 | 3.5 |
| 75 52 48 | 25 | 115 | 100 | 180 | 120 | 4.8 |
| 75 52 49 | 32 | 140 | 105 | 187 | 120 | 6.6 |
| 75 52 50 | 40 | 150 | 115 | 234 | 160 | 8.7 |
Medium Size Series (DN50-DN125):
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 75 52 51 | 50 | 165 | 125 | 236 | 160 | 11.8 |
| 75 52 52 | 65 | 185 | 145 | 271 | 180 | 14.0 |
| 75 52 53 | 80 | 200 | 155 | 291 | 200 | 20.5 |
| 75 52 54 | 100 | 220 | 175 | 332 | 250 | 32.2 |
| 75 52 55 | 125 | 250 | 200 | 387 | 250 | 46.0 |
Large Size Series (DN150-DN300):
| CODE | DN | D (mm) | L (mm) | H (mm) | M (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 75 52 56 | 150 | 285 | 225 | 437 | 320 | 62.0 |
| 75 52 58 | 200 | 340 | 275 | 532 | 360 | 106.0 |
| 75 52 59 | 250 | 405 | 325 | 651 | 360 | – |
| 75 52 60 | 300 | 460 | 375 | 830 | 500 | – |
The description/sizes may be different with goods, please check with us when order.
