Cargo Hold Inclined Ladder
CB*801-85 (Replaces CB801-75)
Technical Diagram

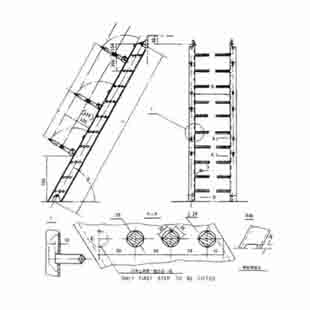

The diagram shows a detailed technical drawing of a cargo hold inclined ladder, including multiple views: a side view showing the overall ladder structure and its angle, a top view, and a sectional view (A-A). The drawing includes dimensional annotations and notes, such as “ONLY FIRST STEP TO BE FITTED” and “RHE FIGURE(420) IN DRAWING IS THE HEIGHT FOR RAIL STANCHION WHEN α=65°F”.
Type Specification Table
| Type | Name | Inclination Angle α | Step Height B (mm) | Ladder Length L (mm) | Application |
|---|---|---|---|---|---|
| A | Left movable handrail cargo inclined ladder | ||||
| LEFT MOVABLE HANDRAIL | 60°, 65° | 600 | 2500 – 6700 | General cargo ship | |
| B | Right movable handrail cargo inclined ladder | ||||
| RIGHT MOVABLE HANDRAIL | General cargo ship | ||||
| C | Left fixed handrail cargo inclined ladder | ||||
| LEFT FIXED HANDRAIL | 60°, 65° | 600 | 2500 – 6700 | Cargo ship | |
| D | Right fixed handrail cargo inclined ladder | ||||
| RIGHT FIXED HANDRAIL | |||||
| E | Left fixed handrail cargo inclined ladder (for bulk carrier) | ||||
| LEFT FIXED HANDRAIL | 65° | 650 | 2500 – 6750 | Bulk carrier | |
| F | Right fixed handrail cargo inclined ladder (for bulk carrier) | ||||
| RIGHT FIXED HANDRAIL |
Note
In the drawing, the figure (420) represents the height of the rail stanchion when the inclination angle α = 65°F.
