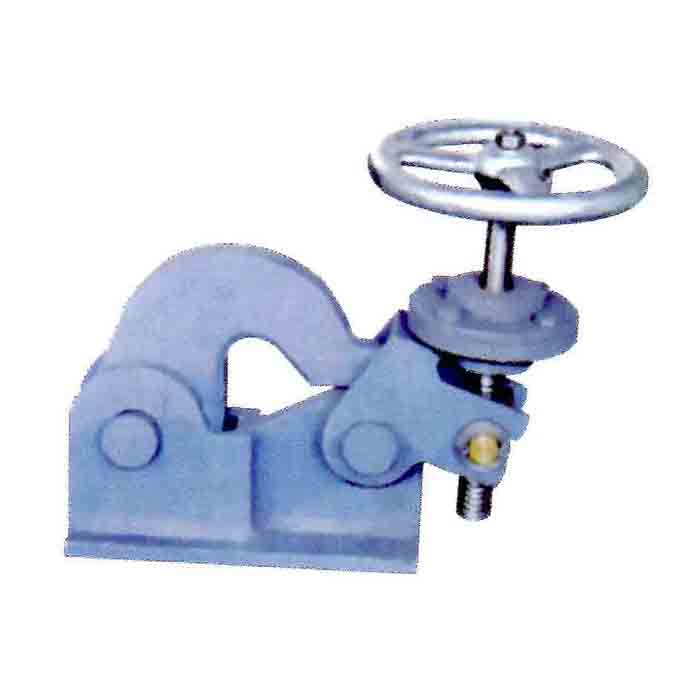

China DIN81860 Cable Releaser – Secure Anchor Chain End Fastening System
Engineered to meet German DIN81860 standards, this robust cable releaser provides secure end fastening for anchor chain cables on commercial vessels and marine structures. Manufactured with precision tolerances and high-strength materials, this essential marine component ensures reliable connection between anchor chains and vessel hulls, delivering optimal performance in demanding maritime environments.
Technical Specifications & Dimensional Data
| Size | d1 x s1 | d2 | l1 | u1 | v1 | v2 | a1 | a2 |
|---|---|---|---|---|---|---|---|---|
| 36-46 | 273 x 12.5 | 375 | 735 | 75 | 10 | 75 | 6 | 3 |
| 48-56 | 323.9 x 14.2 | 440 | 835 | 95 | 12 | 90 | – | 4 |
| 58-68 | 406.4 x 16 | 540 | 995 | 110 | 14 | 95 | 8 | 5 |
| 70-81 | 508 x 17.5 | 645 | 1245 | 105 | 15 | 100 | 10 | 6 |
| 84-92 | – | – | – | 130 | – | 150 | – | – |
| 95-105 | 610 x 20 | 754 | 1430 | – | 18 | – | – | 8 |
| 107-114 | – | – | – | 170 | – | 185 | – | – |
| 117-127 | 711 x 22.2 | 856 | 1615 | – | 20 | – | – | 12 |
| 130-137 | 813 x 22.2 | 958 | 1790 | – | – | – | – | – |
| 142-152 | 914 x 25 | 1060 | 1970 | 190 | 22 | 200 | 14 | 10 |
Product Features & Benefits
-
International Standard Compliance: Manufactured to DIN81860 specifications for global acceptance
-
Secure Chain Termination: Provides reliable end connection for anchor chain systems
-
Heavy-Duty Construction: Engineered for maximum strength and corrosion resistance
-
Marine-Grade Materials: Selected for optimal performance in saltwater environments
-
Precision Engineering: Accurate dimensional compliance ensures proper fit and function
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
