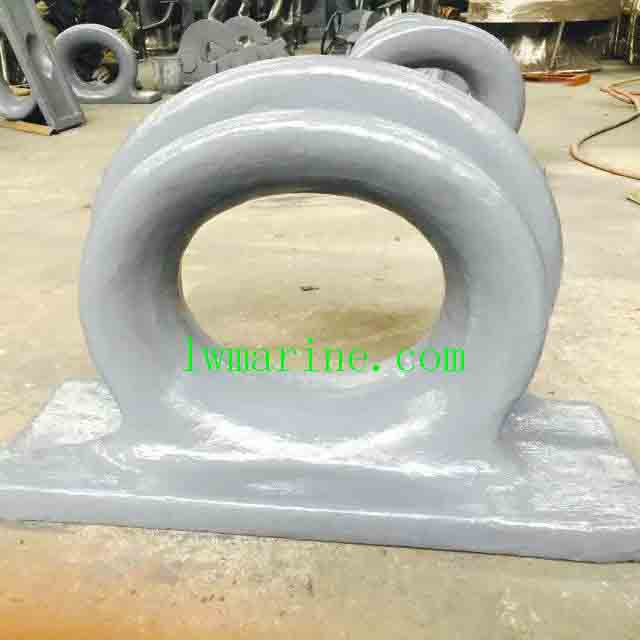

C Type Mooring Chock

CB34-76 C Type Mooring Chock | Heavy-Duty Panama Chock for Marine Ropes

Engineered for exceptional performance and durability, our CB34-76 C Type Mooring Chock is designed to provide secure and efficient guidance for steel wire, hemp, and synthetic mooring lines. As a specialized Panama Chock, it ensures smooth rope handling and minimizes wear, making it an essential deck fitting for both military and industrial vessels. We offer a complete range of CB34-76 chocks, including Type A, B, C, and D, to meet diverse maritime requirements.

Product Highlights & Key Features:

Superior Rope Protection: Features smoothly finished contact surfaces to prevent rope abrasion and extend the service life of mooring lines.
Rigorous Quality Assurance: Implements strict quality control protocols throughout the manufacturing process to guarantee product reliability.
Global Marine Certification: Officially certified by leading classification societies including BV, CCS, DNV, LR, KR, ABS, and RINA.
Comprehensive Customer Support: Backed by reliable after-sales service and technical assistance to ensure long-term satisfaction.
Versatile Rope Compatibility: Designed to accommodate a wide range of steel wire, hemp, and nylon rope diameters.
Robust Construction: Built from high-grade steel to withstand harsh marine environments and heavy-duty use.

Detailed Technical Specifications:

Steel Rope Diameter (mm)	Hemp Rope Perimeter (mm)	Nylon Rope Diameter (mm)	L (mm)	L1 (mm)	B (mm)	B1 (mm)	B2 (mm)	B3 (mm)	H (mm)	H1 (mm)	R (mm)	R1 (mm)	Weight (kg)
15	125	30	150	400	110	170	118	60	250	115	48	102	37.5
18.5	160	35	200	500	150	190	139	71	317	146	65	133	63
22.5	200	45	250	600	190	220	161	82	382	177	85	165	97
28	230	55	300	650	220	250	172	88	436	198	95	203	127
38	270	70	400	750	290	280	185	95	513	240	125	273	210
43.5	325	90	500	880	350	300	199	102	589	277	147	350	296
