NB-200 BWMS Ballast Water Management System – 200 m³/h Advanced BWMS Solution | IMO & USCG Compliant

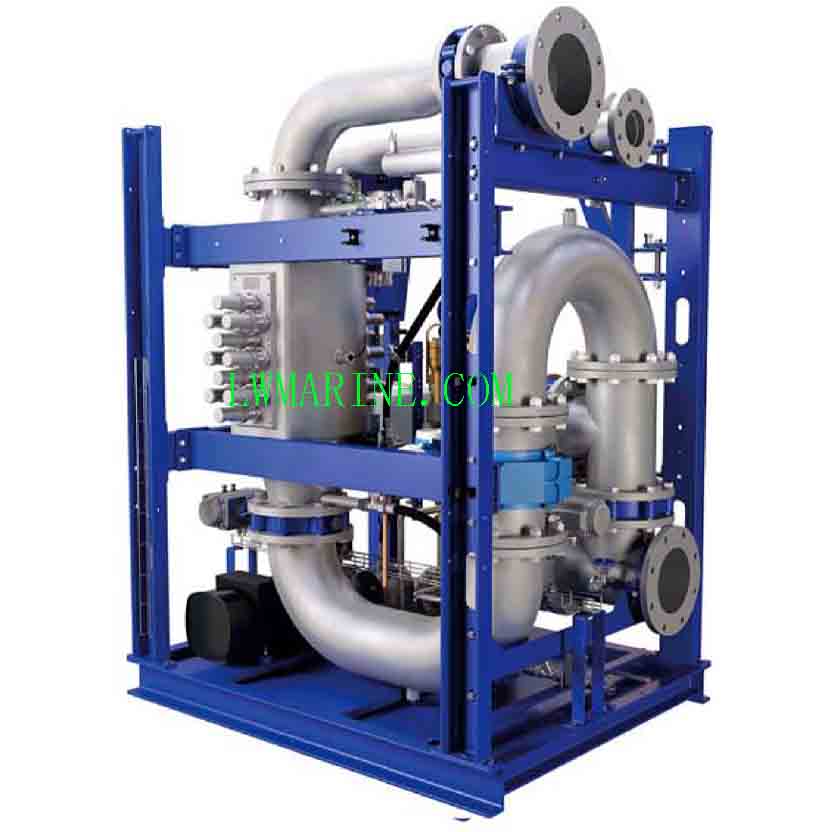

Product Overview
The NB-200 BWMS Ballast Water Management System is a cutting-edge, modular-designed BWMS that delivers superior performance and unmatched efficiency for modern vessels. Utilizing a unique combination of membrane separation technology and nitrogen deoxygenation, this system ensures full compliance with IMO D-2 and USCG standards while significantly reducing operational costs. With the world’s lowest energy consumption—using only one-third the power of conventional systems—the NB-200 provides reliable ballast water treatment regardless of water salinity, temperature, or turbidity conditions.
Key Features & Benefits
-
✅ 200 m³/h Treatment Capacity – Ideal for mid to large-sized commercial vessels
-
✅ Modular & Flexible Design – Easy installation with minimal maintenance space requirements
-
✅ World’s Lowest Energy Consumption – Uses 66% less power than competing systems
-
✅ Nitrogen Deoxygenation Technology – Eliminates organisms while preventing tank corrosion
-
✅ Advanced Membrane Separation – Reduces sediment accumulation and extends cleaning intervals
-
✅ Zero Environmental Limitations – Operates effectively in any salinity, temperature, or turbidity
-
✅ IMO & USCG Compliant – Meets all international ballast water management regulations
Advanced Treatment Technology
The NB-200 employs a sophisticated three-stage treatment process:
1. Mechanical Filtration Stage
-
Removes organisms and solid particles >50μm
-
Automated high-pressure backflush system
-
Differential pressure or timer-controlled cleaning cycles
2. Membrane Separation Stage
-
Removes microorganisms and particles >10μm
-
Gas-water mixture backflush maintenance
-
Significantly reduces sediment accumulation in ballast tanks
3. Nitrogen Deoxygenation Stage
-
Generates nitrogen from ambient air using molecular sieve technology
-
Creates anoxic environment that eliminates aquatic organisms
-
Provides corrosion protection for ballast tank structures
Technical Specifications
| Parameter | Specification |
|---|---|
| Treatment Capacity | 200 m³/h |
| Power Configuration | Customizable based on vessel requirements |
| Salinity Range | No limitation (fresh, brackish, or seawater) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Compressed Air Pressure | 0.7 MPa |
| Flow Rate Compatibility | No limitation |
| Filtration Levels | 50μm (primary) + 10μm (membrane) |
System Components
1. Filter Units
-
Automatic self-cleaning filters with high-pressure backflush
-
Removes larger organisms and particulate matter
-
Differential pressure or timer-controlled operation
2. Membrane Separation Unit
-
Advanced membrane technology for fine filtration
-
Gas-water backflush system for maintenance-free operation
-
Reduces sediment accumulation in ballast tanks
3. Nitrogen Generation System
-
Produces nitrogen from ambient air using PSA technology
-
Creates oxygen-depleted environment to eliminate organisms
-
Provides continuous corrosion protection for tank structures
4. Intelligent Control Unit
-
Fully automated operation with manual override capability
-
Continuous monitoring and data recording
-
User-friendly interface with system status display
Certifications & Approvals
The NB-200 BWMS holds certifications from leading classification societies worldwide:
BV | CCS | NK | DNV GL | ABS | LR | RINA | RS
The description/sizes may be different with goods, please check with us when order.
