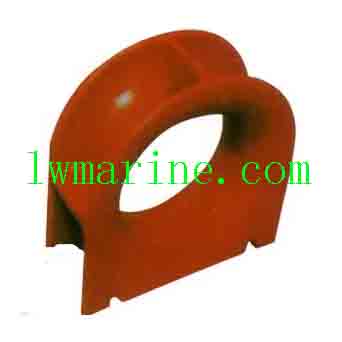

Bulwark Mounted Ship Chock

Bulwark Mounted Ship Chock

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

DIN 81915-1998 Bulwark Mounted Ship Chock – Certified Marine-Grade Chock Solutions

Manufactured in compliance with DIN 81915 standards, our Bulwark Mounted Ship Chock is engineered for reliable mooring guidance and long-term performance in marine environments. We offer the complete range of DIN 81915 chock types – including Type A, Type B, and Type C – to meet various vessel layouts and operational requirements.

Built from high-strength cast steel (ZG200-400, ZG230-450), ensuring consistent quality control and competitive pricing. All products can be supplied with major international certifications such as BV, CCS, DNV, ABS, along with full mill certificates.

PRODUCT SPECIFICATIONS

  • Standard: DIN 81915-1998 Type A (Bulwark Mounted)

  • Material: Cast Steel ZG200-400, ZG230-450

  • Surface Treatment: Grey Epoxy Primer or Black Bitumen Paint

  • Packaging: Reinforced Iron Shelf Packaging

  • Certification: BV, CCS, DNV, ABS & Mill Certificates Available

DIMENSIONS & LOAD DATA

Product No. SWL (kN) L (mm) W (mm) H (mm) H1 (mm) A (mm) B (mm) Mass (kgs)
BMD-001 20 360 200 315 70 160 115 30
BMD-002 30 450 250 390 75 200 140 50
BMD-003 50 550 300 480 80 250 180 85
BMD-004 80 680 360 585 90 320 225 140
BMD-005 125 840 440 710 110 400 270 210
BMD-006 200 1020 520 840 130 500 320 320
BMD-007 320 1300 700 1100 150 600 400 800

KEY FEATURES & BENEFITS

  • Full Range DIN 81915 Chocks: Type A, B, and C available for different mounting applications

  • High-Strength Cast Steel Construction: ZG200-400 / ZG230-450 materials for durability and impact resistance

  • International Certification Ready: BV, CCS, DNV, ABS and mill certificates available upon request

  • Corrosion-Resistant Finishes: Grey epoxy primer or black bitumen paint for extended service life

  • Secure Export Packaging: Iron shelf packaging guarantees safe transit and storage

APPLICATIONS

  • Commercial ships and cargo vessels

  • Offshore platforms and support boats

  • Naval and patrol vessels

  • Ferry and passenger ship bulwark systems

  • Port and shipyard mooring installations

Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
