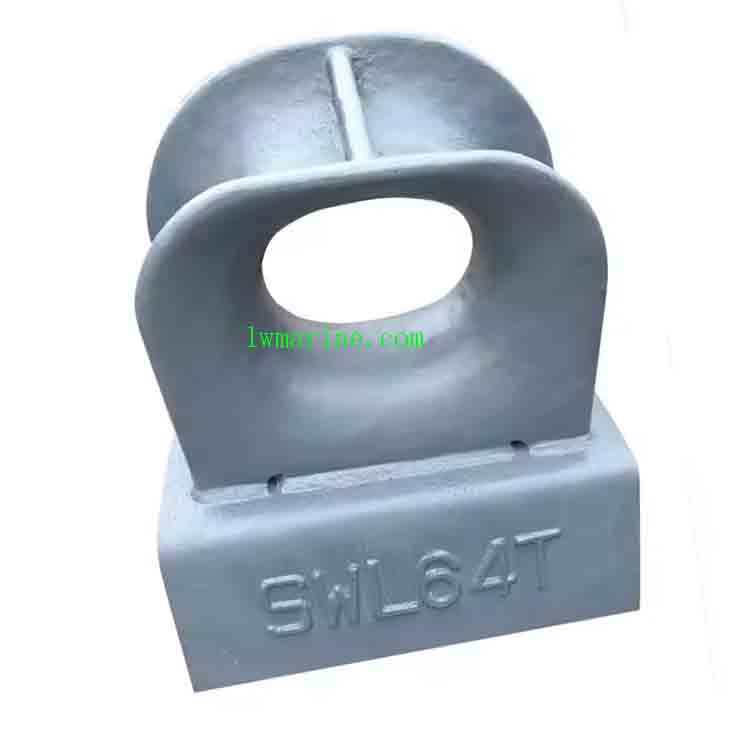

JIS F 2007-1976 A Type Bulwark Mounted Mooring Chock
Ensure superior mooring safety and line protection with our JIS F 2007-1976 A Type Bulwark Mounted Mooring Chock. Engineered to exact Japanese Industrial Standards, these robust cast steel mooring chocks provide reliable performance for commercial vessels, port facilities, and offshore applications. Designed for bulwark installation, they offer secure guidance for mooring lines while minimizing wear and abrasion.
Product Features & Quality Assurance
-
Rigorous Quality Control: Comprehensive manufacturing oversight ensures consistent performance and durability.
-
International Certification: Supplied with BV, CCS, DNV, ABS certifications and mill certificates for global compliance.
-
High-Strength Material: Fabricated from durable cast steel ZG200-400 and ZG230-450 for exceptional load-bearing capacity.
-
Advanced Corrosion Protection: Standard finishes include Grey Epoxy Primer or Black Bitumen Paint, with custom coating thickness available upon request.
-
Secure Packaging: Protected with steel shelf packing for damage-free international shipping.
Technical Specifications
| Product No. | Size (mm) | Weight (KG) | ||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| BMA-001 | 150 | 300 | 110 | 260 | 129 | 15.1 |
| BMA-002 | 200 | 368 | 150 | 318 | 143 | 20.5 |
| BMA-003 | 250 | 430 | 200 | 380 | 155 | 26.9 |
| BMA-004 | 300 | 500 | 250 | 450 | 169 | 42.7 |
| BMA-005 | 350 | 560 | 250 | 460 | 179 | 50.8 |
| BMA-006 | 400 | 632 | 250 | 482 | 195 | 76.3 |
| BMA-007 | 450 | 700 | 250 | 500 | 209 | 102 |
| BMA-008 | 500 | 760 | 250 | 510 | 219 | 115 |
The description/sizes may be different with goods, please check with us when order.
