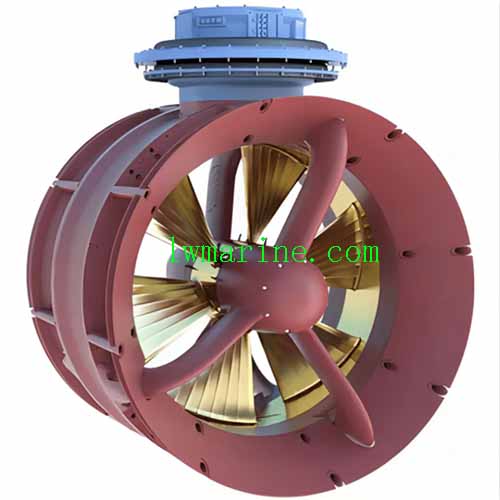

Bow Thruster for Tug
Primary Function
The Electric Tunnel Bow Thruster for Tug enhances vessel maneuverability by generating adjustable lateral thrust (port/starboard) through a variable-speed electric drive system, improving navigation precision in tight spaces.
Working Principle
-
Power Transmission:
-
The electric motor delivers torque via a coupling to a reduction gearbox (helical/bevel gears).
-
Gears transfer power to the fixed-pitch propeller, converting rotation into directional thrust.
-
-
Speed & Thrust Control:
-
Variable Frequency Drive (VFD) regulates motor speed, enabling smooth thrust modulation.
-
Instant direction reversal for rapid side-to-side maneuvering.
-
Specifications for 530KW Tunnel Bow Thruster:
| Motor: | AC 380V, 50Hz, 3 phase |
| Motor Power: | 530KW |
| Gearbox Ratio: | 2.64:1 |
| Nominal Thrust: | 75KN |
| Working Mode: | S2-30min |
| Insulation Grade: | F |
| Protection Grade: | IP44 |
| Installation Mode: | Vertical Type |
| Standard: | IEC |
| Outer Diameter of Cylinder: | ø1340mm |
| Cylinder Thickness: | 20mm |
| Propeller Diameter: | ø1275mm |
| Blade No.: | 4 |
| Propeller Speed: | 560rpm |
FAQ:
Q: What’s your minimum order quantity?
A: Our MOQ is flexible starting from just 1 set.
Q: Can you accommodate custom orders?
A: Yes, we specialize in customized solutions tailored to your specific requirements.
Q: What are your competitive advantages?
A: Our key strengths include:
✔ Advanced manufacturing technology
✔ Rigorous quality assurance
✔ Cost-effective pricing
✔ Faster production cycles
The description/sizes may be different with goods, please check with us when order.
