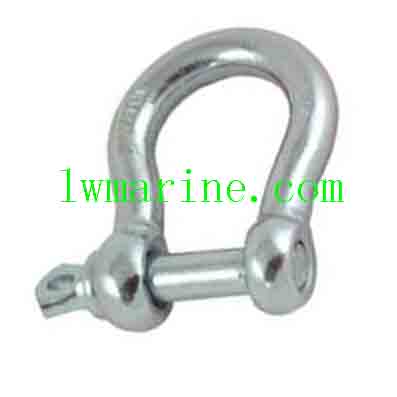

Bow Shackle “O” Shackle
Our company has been a trusted supplier of Bow Screw Pin Anchor Shackle “O” Shackle, specifically the US Type G209, for numerous years. We offer a comprehensive range of sizes to cater to various rigging needs. Our dedicated and professional sales team is committed to providing you with the best service and support. Feel free to reach out to us for any inquiries or to place an order.
Product Details:
- Model: Screw Pin Anchor Shackle US Type G209 (High-Strength Rigging Shackle, Marine Grade Anchor Shackle)
- Material Options: Stainless Steel (Corrosion-Resistant Shackle), Carbon Steel (Durable Rigging Component), Alloy Steel (Enhanced Performance Shackle)
- Applications: Marine Hardware, Electric Power Industry, Heavy Machinery, Construction Rigging
- Surface Treatments: Electric Galvanized (Anti-Corrosion Coating), Hot Dipped Galvanized (Long-Lasting Protection), Self-Colored (Natural Finish Option)
- Size Range: Multiple Sizes Available to Suit Different Rigging Requirements
- Packaging Options: Gunny Bag, Carton with Pallet, or Customized Packaging Based on Customer Preferences
- Our Strengths: Quality Assurance, Experienced Technical Staff, Professional Customer Service, Competitive Pricing Strategy
- Certifications: ISO9001 Quality Management System, CE Safety Compliance, SGS Verification
- Customization: Special Specifications and Custom Marks Available Upon Customer Request
Main Technical Specifications:
| Nominal Size (in.) | Working Load (tons) | Dimensions (A, B, C, D, E, F, H, L, N in.) | Weight (lbs.) |
|---|---|---|---|
| 3/16 | 1/3 | 0.38, 0.25, 0.88, 0.19, 0.6, 0.56, 1.47, 0.98, 0.19 | 0.06 |
| 1/4 | 1/2 | 0.47, 0.31, 1.13, 0.25, 0.78, 0.61, 1.84, 1.28, 0.25 | 0.11 |
| … | … | … | … |
| 4 | 150 | 5.5, 4.26, 14.5, 4, 10, 9, 25.68, 18, 4.56 | 338 |
| (Full table of specifications available upon request or on our website) |
FAQs:
- Q: What is the maximum working load capacity of the largest size shackle available?
- A: The largest size shackle, with a nominal size of 4 inches, has a maximum working load capacity of 150 tons, making it suitable for heavy-duty rigging applications.
- Q: Are these shackles suitable for use in corrosive environments, such as offshore platforms?
- A: Yes, our shackles are available with electric galvanized or hot dipped galvanized finishes, which provide excellent corrosion resistance, making them ideal for use in corrosive environments like offshore platforms.
- Q: Can I request a custom size or marking on the shackles for branding purposes?
- A: Absolutely, we offer customization options for special specifications and custom marks on the shackles to meet your branding or identification needs.
- Q: What is the difference between stainless steel and carbon steel shackles in terms of performance and cost?
- A: Stainless steel shackles offer superior corrosion resistance, making them suitable for harsh environments, but they may come at a higher cost. Carbon steel shackles, on the other hand, provide excellent strength and durability at a more cost-effective price point.
- Q: How do I determine the correct size shackle for my specific rigging application?
- A: The correct size shackle depends on the working load capacity required and the dimensions of the rigging components it will be connecting. Refer to our technical specifications table or consult with our technical team for assistance in selecting the appropriate size shackle for your application.
