Bow Shackle B53032
Material: 45# Carbon Steel
Surface Finish: Electro Galvanized

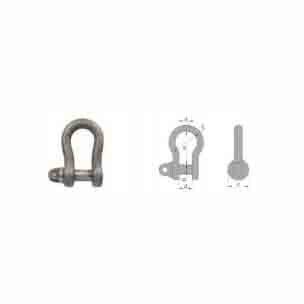

| WLL (t) | a | b | c | d | e | f | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 0.15 | 6.00 | 10.00 | 19.00 | 13.00 | 28.00 | 19.00 | 0.12 |
| 0.45 | 10.00 | 13.00 | 25.00 | 16.00 | 41.00 | 25.00 | 0.18 |
| 0.75 | 13.00 | 16.00 | 32.00 | 22.00 | 54.00 | 32.00 | 0.37 |
| 1.25 | 16.00 | 19.00 | 38.00 | 28.00 | 70.00 | 41.00 | 0.72 |
| 2.00 | 19.00 | 22.00 | 44.00 | 35.00 | 86.00 | 51.00 | 1.20 |
| 2.75 | 22.00 | 25.00 | 50.00 | 41.00 | 98.00 | 57.00 | 1.85 |
| 3.75 | 25.00 | 28.00 | 56.00 | 45.00 | 108.00 | 64.00 | 2.61 |
| 4.75 | 28.00 | 31.00 | 63.00 | 51.00 | 124.00 | 73.00 | 3.78 |
| 5.75 | 32.00 | 35.00 | 70.00 | 57.00 | 137.00 | 83.00 | 5.17 |
| 7.25 | 35.00 | 38.00 | 75.00 | 63.00 | 152.00 | 89.00 | 6.46 |
| 8.50 | 38.00 | 43.00 | 89.00 | 76.00 | 184.00 | 108.00 | 8.34 |
| 9.50 | 42.00 | 48.00 | 93.00 | 79.00 | 187.00 | 111.00 | 11.10 |
| 11.50 | 46.00 | 51.00 | 97.00 | 82.00 | 206.00 | 121.00 | 14.50 |
| 13.00 | 50.00 | 54.00 | 106.00 | 92.00 | 222.00 | 130.00 | 17.80 |
| 15.00 | 53.00 | 57.00 | 114.00 | 98.00 | 238.00 | 140.00 | 25.50 |
| 16.50 | 57.00 | 60.00 | 121.00 | 105.00 | 257.00 | 152.00 | 34.40 |
| 20.00 | 60.00 | 64.00 | 127.00 | 111.00 | 273.00 | 162.00 | 36.80 |
| 25.00 | 67.00 | 73.00 | 148.00 | 121.00 | 302.00 | 178.00 | 45.00 |
| 30.00 | 73.00 | 79.00 | 158.00 | 133.00 | 339.00 | 197.00 | 62.20 |
| 35.00 | 79.00 | 86.00 | 178.00 | 151.00 | 379.00 | 213.00 | 81.80 |
| 40.00 | 85.00 | 93.00 | 198.00 | 169.00 | 419.00 | 239.00 | 95.00 |
| 50.00 | 95.00 | 102.00 | 223.00 | 191.00 | 479.00 | 254.00 | 131.00 |
| 65.00 | 108.00 | 114.00 | 229.00 | 197.00 | 483.00 | 286.00 | 194.00 |
| 80.00 | 117.00 | 127.00 | 254.00 | 216.00 | 533.00 | 308.00 | 274.00 |
Note: The description may be different with the product, please contact us for quotation.
