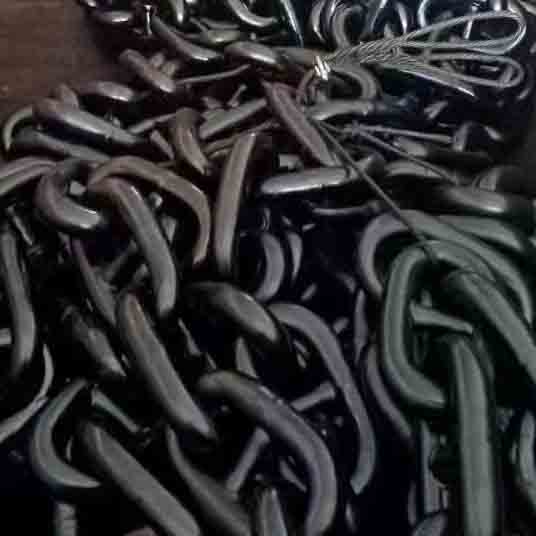

Black Painted Anchor Chain – Durable Marine-Grade Anchoring Solution
High-Strength Chain with Protective Bituminous Coating
Our black painted anchor chain provides reliable holding power with enhanced corrosion protection, manufactured to international standards for commercial and industrial marine applications.
Key Specifications:
-
Material: CM490 (U2 Grade) / CM690 (U3 Grade) steel
-
Diameter Range: 12.5mm – 162mm
-
Standard Length: 27.5m per shackle (custom lengths available)
-
Surface Treatment: High-adhesion bituminous paint
-
Certifications: ABS, BV, CCS, DNV GL, KR, LR, NK, RINA, RS
Black Painted Anchor Chain Specification:
| Nominal Diameter mm | Weight | Breaking Load | Proof Load | ||
| AM2 | AM3 | AM2 | AM3 | ||
| kg/27.5m | kN | kN | kN | kN | |
| 12.5 | 98 | 92 | 132 | 66 | 92 |
| 14 | 122 | 116 | 165 | 82 | 116 |
| 16 | 161 | 150 | 216 | 107 | 150 |
| 17.5 | 193 | 179 | 256 | 127 | 179 |
| 19 | 227 | 211 | 301 | 150 | 211 |
| 20.5 | 264 | 244 | 349 | 175 | 244 |
| 22 | 305 | 280 | 401 | 200 | 280 |
| 24 | 362 | 332 | 476 | 237 | 332 |
| 26 | 425 | 389 | 556 | 278 | 389 |
| 28 | 493 | 449 | 642 | 321 | 449 |
| 30 | 566 | 514 | 735 | 368 | 514 |
| 32 | 644 | 583 | 833 | 417 | 583 |
| 34 | 727 | 655 | 937 | 468 | 655 |
| 36 | 815 | 732 | 1050 | 523 | 732 |
| 38 | 909 | 812 | 1160 | 581 | 812 |
| 40 | 1007 | 896 | 1280 | 640 | 896 |
| 42 | 1110 | 981 | 1400 | 703 | 981 |
| 44 | 1218 | 1080 | 1540 | 769 | 1080 |
| 46 | 1331 | 1170 | 1680 | 837 | 1170 |
| 48 | 1450 | 1270 | 1810 | 908 | 1270 |
| 50 | 1573 | 1370 | 1960 | 981 | 1370 |
| 52 | 1701 | 1480 | 2110 | 1060 | 1480 |
| 54 | 1835 | 1590 | 2270 | 1140 | 1590 |
| 56 | 1973 | 1710 | 2430 | 1220 | 1710 |
| 58 | 2117 | 1810 | 2600 | 1290 | 1810 |
| 60 | 2265 | 1940 | 2770 | 1380 | 1940 |
| 62 | 2419 | 2060 | 2940 | 1470 | 2060 |
| 64 | 2577 | 2190 | 3130 | 1560 | 2190 |
| 66 | 2741 | 2310 | 3300 | 1660 | 2310 |
| 68 | 2909 | 2450 | 3500 | 1750 | 2450 |
| 70 | 3080 | 2580 | 3690 | 1840 | 2580 |
| 73 | 3353 | 2790 | 3990 | 1990 | 2790 |
| 76 | 3634 | 3010 | 4300 | 2150 | 3010 |
| 78 | 3828 | 3160 | 4500 | 2260 | 3160 |
| 81 | 4128 | 3380 | 4820 | 2410 | 3380 |
| 84 | 4440 | 3610 | 5160 | 2580 | 3610 |
| 87 | 1762 | 3850 | 5500 | 2750 | 3850 |
| 90 | 5097 | 4090 | 5840 | 2920 | 4090 |
| 92 | 5326 | 4260 | 6080 | 3040 | 4260 |
| 95 | 5679 | 4510 | 6440 | 3230 | 4510 |
| 97 | 5920 | 4680 | 6690 | 3340 | 4680 |
| 100 | 6292 | 4940 | 7060 | 3530 | 4940 |
| 102 | 6546 | 5120 | 7320 | 3660 | 5120 |
| 105 | 6937 | 5390 | 7700 | 3850 | 5390 |
| 107 | 7204 | 5570 | 7960 | 3980 | 5570 |
| 111 | 7752 | 5940 | 8480 | 4250 | 5940 |
| 114 | 8177 | 6230 | 8890 | 4440 | 6230 |
| 117 | 8613 | 6510 | 9300 | 4650 | 6510 |
| 120 | 9060 | 6810 | 9720 | 4850 | 6810 |
| 122 | 9360 | 7000 | 9990 | 5000 | 7000 |
| 124 | 9675 | 7200 | 10280 | 5140 | 7200 |
| 127 | 10148 | 7490 | 10710 | 5350 | 7490 |
| 130 | 10635 | 7800 | 11140 | 5570 | 7800 |
| 132 | 10965 | 8000 | 11420 | 5720 | 8000 |
| 137 | 11810 | 8510 | 12160 | 6080 | 8510 |
| 142 | 12690 | 9030 | 12910 | 6450 | 9030 |
| 147 | 13600 | 9560 | 13660 | 6840 | 9560 |
| 152 | 14500 | 10100 | 14430 | 7220 | 10100 |
| 157 | 15520 | 10640 | 15200 | 7600 | 10640 |
| 162 | 16530 | 11180 | 15980 | 7990 | 11180 |
The description/sizes may be different with goods, please check with us when order.
