Bilge Separator for Ships

Certificate: CCS, GL, BV certificate, etc.
Delivery Time: 15 days
Place of Origin: China
Packing Details: Export standard packaging.

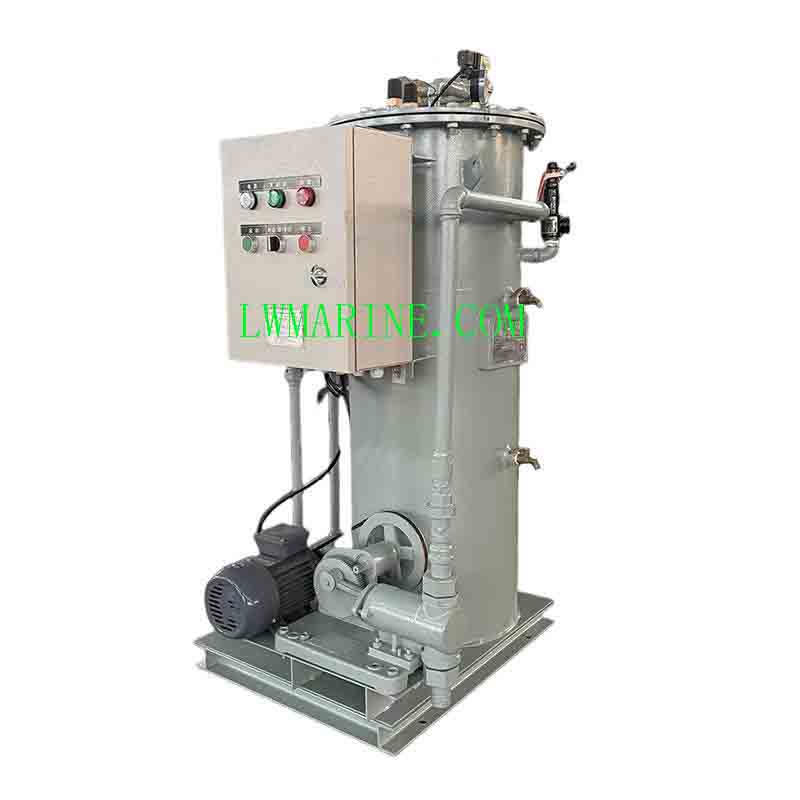

0.5 m³/h Compact Bilge Separator for Ships

The YSZ-0.5 Compact Bilge Separator for Ships delivers high-performance bilge water treatment in an exceptionally space-efficient design. Engineered for small to medium vessels, this system processes oily wastewater to meet stringent IMO MEPC.107(49) international standards, ensuring discharge quality below 15ppm. Its compact structure, lightweight construction, and user-friendly operation make it the ideal solution for vessels with limited engine room space.

Key Features & Benefits

  • Ultra-Compact Design: Space-saving footprint with lightweight construction for easy installation in confined areas

  • High Efficiency Performance: Delivers 0.5 m³/h treatment capacity while maintaining ≤15ppm discharge quality

  • IMO MEPC.107(49) Certified: Full compliance with international marine environmental regulations

  • Energy Efficient Operation: Low power consumption (0.25kW motor) with 1kW heating capability reduces operating costs

  • Simple Operation & Maintenance: User-friendly design enables easy operation and minimal maintenance requirements

  • Global Power Compatibility: Supports both 3Phase/380V/50Hz and 3Phase/440V/60Hz electrical systems

  • IACS Certification Ready: Available with all major classification society approvals

Technical Specifications

Parameter Specification
Model YSZ-0.5
Treatment Capacity 0.5 m³/h
Discharge Standard ≤15 ppm (IMO MEPC.107(49))
Working Pressure ≤0.3 MPa
Motor Power 0.25 kW
Electric Heating Power 1 kW
Power Supply 3Ph/380V/50Hz or 3Ph/440V/60Hz

Connection Interface Specifications

Connection Point Size (DN)
Standard Discharge Outlet 20
Exceed Standard Outlet 20
Oil-Discharge Outlet 20
Back Flushing Inlet 20
Clean Water Inlet 20
Oily Water Inlet 25

Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
