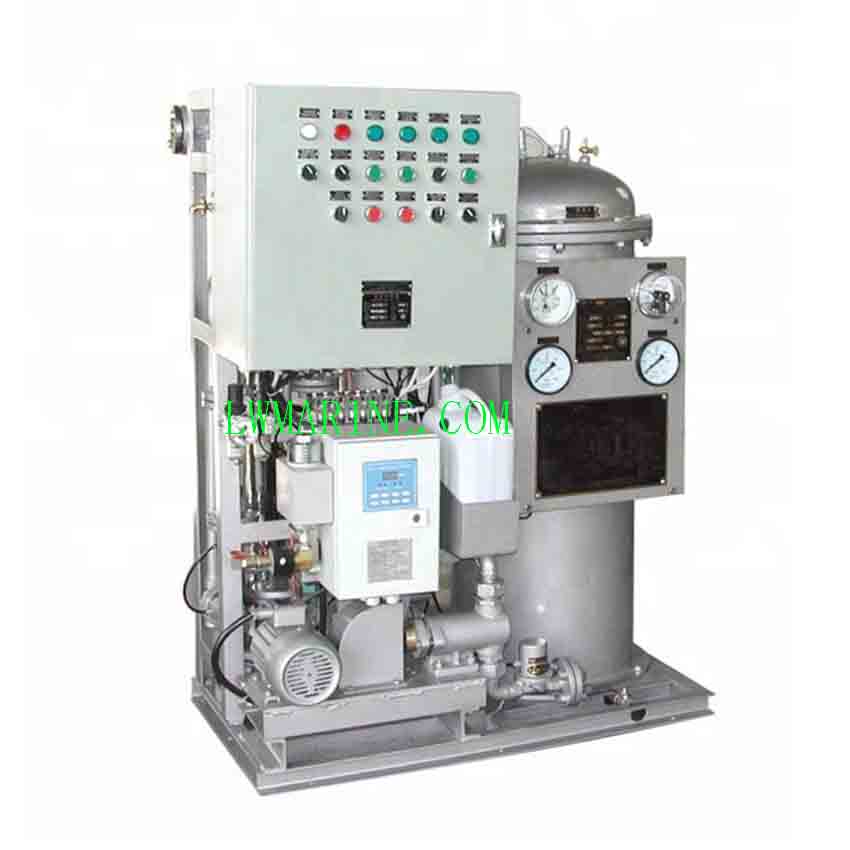

Bilge Oily Water Separator
Elevate your maritime environmental compliance to the highest level with our cutting – edge Bilge Oily Water Separator. This fully type – approved marine oil – water treatment system is meticulously engineered to handle oily bilge water in strict accordance with IMO MEPC.107(49) regulations. It ensures that the water discharged into the sea contains no more than 15ppm of oil, meeting the stringent requirements for preventing marine pollution. The integrated system combines a high – efficiency oil – water separator, a precision 15ppm bilge alarm, and an automatic shut – down device, offering a comprehensive and reliable solution for modern ships and offshore platforms.
Key Features & Advantages
✅ IMO MEPC.107(49) Certified for Marine Pollution Prevention – This certification serves as a solid guarantee that the system strictly adheres to international marine pollution prevention standards, enabling your vessel to operate legally and responsibly on the high seas.
✅ All – in – One Bilge Treatment Solution – It integrates a separator, an oil content monitor, and automatic safety controls into a single system, streamlining the bilge water treatment process and reducing the need for multiple separate components.
✅ Three – Stage Advanced Separation Technology – Utilizes advanced coalescing plates, depth filtration, and membrane technology in a three – stage separation process. This ensures highly efficient removal of oil from bilge water, achieving the desired ≤15ppm oil content.
✅ Fully Automated for Hands – Off Operation – Features automatic oil discharge, backflush cycles, and safety shutdowns. This reduces the need for constant manual monitoring and intervention, enhancing operational efficiency and safety.
✅ Globally Recognized Marine Approvals – Certified by multiple well – known classification societies including CCS, BV, DNV, ABS, LR, GL, KR, RINA, and EC. This indicates its high quality and suitability for use in various international maritime operations.
✅ Safety – Oriented Design with Professional Maintenance – Incorporates comprehensive electrical safety features to protect both the system and personnel. Additionally, it comes with professional maintenance requirements to ensure long – term reliable performance.
Advanced Treatment Process
Stage 1: Primary Separation and Coalescing
Bilge water first enters the system through a seawater pre – filter and a non – return valve into the first separator chamber. Inside this chamber, hydrophilic cone wave plates play a crucial role. They facilitate the coalescence of oil particles, causing them to combine into larger droplets. Due to the difference in density, free oil then rises into the collection chamber through the natural force of gravity separation, effectively separating a significant portion of the oil from the water.
Stage 2: Automated Oil Removal and Backflush
When the oil level reaches the interface level within the system, sensors come into action. They trigger automatic valves (VS1, VS2) to initiate a fresh water backflushing process. This pressurized cleaning cycle uses fresh water to propel the accumulated oil from the separator chamber to the waste oil tank. During this process, the system temporarily pauses its feeding operations to ensure thorough cleaning and efficient oil removal.
Stage 3: Secondary Filtration and Membrane Polishing
The pre – treated water, after the initial two stages of separation, passes through secondary filters for further purification. If the 15ppm monitor detects that the oil content in the water exceeds the allowed limit, automatic three – way valves (VS4/VS5) are activated. These valves divert the water flow to the third – stage ultrafiltration membrane. Using advanced permeation technology, the membrane performs final purification, ensuring that the discharged water meets the strict ≤15ppm standard consistently.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
