Ballast BWMS
The N Ballast BWMS is a brand new system independently developed by our company to meet the IMO and USCG ballast water discharge standards. The system applies 50μm self-cleaning filter and micro-filtration membrane to remove solid particles, organisms and even bacteria, and inject with inert gas – nitrogen.

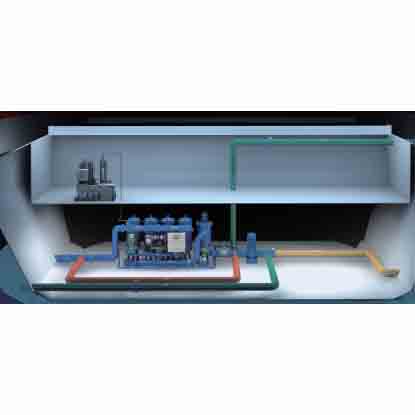

Ballasting: The overboard sea water is sucked through sea rough filter by ballast water pump, and then enters filter unit, membrane separator into ballast tank, while it is charged nitrogen.
De-ballasting: The ballast water in ballast tank is sucked by ballast pump to discharge overboard.
1. Safety and environmental protection – physical treatment process, no use or produce chemical substances.
-
Direct discharge during de-ballast – direct discharge during de-ballast without secondary treatment.
-
Low carbon & energy saving – low power consumption for system operation.
-
Nitrogen for anticorrosion – nitrogen for de-oxygenation, reducing corrosion.
-
Less sediments – two steps of filtration, high efficiency to remove impurities in water.
-
Wide application – no limitation for ballast water salinity, temperature, turbidity.
-
Easy operation – one key start, operate at anytime.
-
Low installation and operating costs – few pipe connections; small cable consumption, small specifications; low power consumption, less replacement of wearing parts.
2. Main parameters
| Product Model | 40 | 100 | 200 | 300 | 500 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 | 2500 | 3000 | 4000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (m³/h) | 40 | 100 | 200 | 300 | 500 | 600 | 800 | 1000 | 1200 | 1500 | 1800 | 2000 | 2500 | 3000 | 4000 |
| Rated Power (kw) | 4.2 | 4.5 | 6 | 6 | 6 | 11.5 | 11.5 | 11.75 | 11.75 | 22.5 | 22.5 | 25 | 25 | 35 | 35 |
| Outline dimension L×W×H (mm) | 200 | 600 | 800 | 800 | 780 | 800 | 1000 | 1000 | 1200 | 1400 | 1600 | 1800 | 2100 | 2300 | 2500 |
| 80 | 100 | 110 | 110 | 130 | 130 | 150 | 150 | 150 | 180 | 180 | 200 | 200 | 220 | 220 | |
| 100 | 140 | 150 | 150 | 180 | 180 | 220 | 220 | 280 | 280 | 320 | 320 | 350 | 350 | 400 | |
| Consumed power (kw) | 1.5 | 2.3 | 4 | 4 | 5.5 | 9.5 | 9.5 | 9.75 | 11 | 11 | 13 | 15 | 15 | 18 | 18 |
| Rated capacity of air compressor (m³/h) | 0.5 | 2 | 5 | 7 | 15 | 25 | 30 | 45 | 55 | 75 | 80 | 90 | 90 | 120 | 150 |
| 900 | 900 | 1500 | 1500 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2400 | 2800 | 2800 | 2800 | 4500 | |
| * Nitrogen consumption (L/min) | According to 3 times of ships ballast water capacity, but more than 950L/min (can be shared with ships inert gas system) | ||||||||||||||
| * Nitrogen supply pressure (Mpa) | 0.8MPa, 0.2~1.0MPa adjustable | ||||||||||||||
| Protection grade | IP56 | ||||||||||||||
| Voltage (V) | 440V 60Hz 3P | 380V 50Hz 3P | |||||||||||||
| Anti-corrosion grade | C5M | ||||||||||||||
| * Inert gas supply (m³/h) | 2500 | 3000 | 3000 | 3000 | 6000 | 6000 | 6000 | 6000 | 12000 | 12000 | 12000 | 12000 | 12000 | 16000 | 16000 |
| * Inert gas system power (kw) | 7.85 | 8.65 | 10.55 | 14.35 | 15.95 | 17.35 | 19.35 | 23.35 | 32.35 | 39.45 | 52.65 | 53.65 | 59.45 | 70.6 | 80.85 |
| * Inert gas supply pressure (MPa) | 0.05MPa, 0.01~0.08MPa adjustable | ||||||||||||||
| Discharge standard | IMO D-2 | ||||||||||||||
| * Remarks |
Note: The actual power consumption is 1/2~1/3 of the configuration power. Specifications in above form are just for reference, they can be non-standard designed according shipboard condition.
Note: The description may be different with the product, please contact us for quotation.
