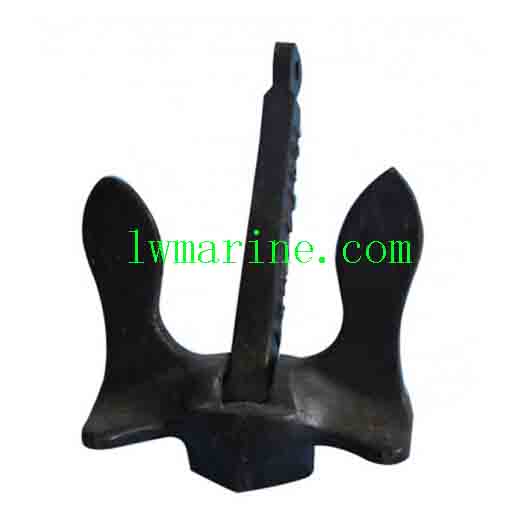

Baldt Stockless Anchor: Certified Heavy-Duty Marine Anchoring Solution
The Baldt Stockless Anchor represents the industry standard for reliable, high-performance marine anchoring systems. Manufactured from premium casting steel ZG200-400C, this conventional stockless anchor delivers exceptional durability and holding power for commercial vessels, cargo ships, and offshore applications. Every Baldt anchor comes with full certification from leading classification societies, ensuring compliance with international marine standards and guaranteed quality assurance.
Engineered for Maximum Reliability & Performance
Designed with a proven stockless configuration, the Baldt Anchor offers superior seabed penetration and consistent performance across various marine conditions. Its robust construction and optimized geometry ensure rapid setting and reliable holding capacity, making it the preferred choice for shipowners and operators worldwide who demand uncompromising safety and performance.
Key Features & Technical Specifications:
-
Premium Material: Constructed from high-strength casting steel ZG200-400C for exceptional durability and corrosion resistance
-
Full Certification Available: Compliant with ABS, LR, BV, GL, DNV, NK, IRS, and CCS classification standards
-
Heavy-Duty Weight Range: Available from 200 kg to 50,000 kg to accommodate vessels of all sizes
-
Proven Stockless Design: Ensures easy handling, storage, and reliable seabed engagement
-
Optimized Fluke Geometry: Provides maximum holding power and rapid penetration in various seabed conditions
-
Global Marine Compliance: Meets international requirements for commercial shipping and marine operations
Technical Specifications & Dimensional Data
| Weight/Mass (KG) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 200 | 685 | 457 | 241 | 366 | 190.5 |
| 300 | 812 | 590 | 296 | 442 | 230 |
| 400 | 812 | 654 | 330 | 482 | 250 |
| 500 | 900 | 673 | 356 | 530 | 287.5 |
| 750 | 965 | 770 | 407 | 584 | 308 |
| 1000 | 1067 | 854 | 457 | 640 | 347.5 |
| 1250 | 1165 | 923 | 475 | 720 | 370 |
| 1500 | 1232 | 1005 | 515 | 748 | 392 |
| 2000 | 1370 | 1092 | 558 | 848 | 430 |
| 2100 | 1370 | 1092 | 558 | 848 | 436 |
| 2500 | 1473 | 1136 | 568 | 848 | 448 |
| 3000 | 1625 | 1194 | 648 | 912 | 483 |
| 3500 | 1625 | 1340 | 698 | 1003 | 500 |
| 4000 | 1734 | 1354 | 705 | 1054 | 518 |
| 4500 | 1794 | 1440 | 735 | 1066 | 563 |
| 5000 | 1930 | 1460 | 762 | 1130 | 588 |
| 6000 | 1930 | 1613 | 844 | 1194 | 641.5 |
| 6300 | 1930 | 1613 | 844 | 1194 | 641.5 |
| 7000 | 2082 | 1691 | 882 | 1263 | 668 |
| 8000 | 2265 | 1691 | 894 | 1276 | 668 |
| 9000 | 2438 | 1784 | 924 | 1314 | 695 |
| 10000 | 2438 | 1918 | 990 | 1470 | 725 |
| 11000 | 2438 | 1918 | 990 | 1473 | 778 |
| 12000 | 2438 | 1950 | 1016 | 1473 | 778 |
| 13000 | 2489 | 1949 | 1016 | 1473 | 799 |
| 14000 | 2616 | 2045 | 1118 | 1524 | 818 |
| 15000 | 2616 | 2184 | 1168 | 1600 | 875 |
| 16000 | 2738 | 2184 | 1168 | 1651 | 875 |
| 17200 | 2738 | 2184 | 1222 | 1660 | 875 |
| 18000 | 2850 | 2240 | 1232 | 1667 | 888 |
| 20000 | 2840 | 2440 | 1270 | 1866 | 990 |
| 25000 | 3048 | 2616 | 1365 | 1968 | 990 |
| 30000 | 3251 | 2794 | 1454 | 2096 | 1052 |
| 35000 | 3429 | 2946 | 1524 | 2210 | 1107 |
| 40000 | 3556 | 3073 | 1600 | 2311 | 1157 |
| 45000 | 3733 | 3200 | 1651 | 2388 | 1203 |
| 50000 | 3860 | 3327 | 1727 | 2515 | 1246 |
The description/sizes may be different with goods, please check with us when order.
