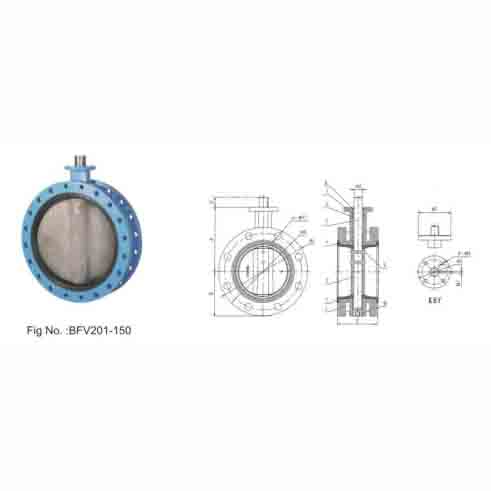

AWWA C504 CLASS 125 BUTTERFLY VALVE

Fig No.: BFV201-150

TECHNICAL REQUIREMENT:

  • Design and Manufacture: Conform to AWWA C504
  • Flange dimensions: Conform to ANSI B16.1 CLASS 125
  • Face to Face dimensions: Conform to AWWA C504 Short Body
  • Testing: Conform to AWWA C504
  • Driving mode: lever, worm actuator, electric, pneumatic

MATERIALS OF PARTS

NO. PART NAME MATERIAL OPTIONAL MATERIAL
1 BODY ASTM A126 CLASS B ASTM A536 65 – 45 – 12
2 SEAT NBR EPDM
3 DISC PLATED DUCTILE IRON ASTM A351 CF8/CF8M
4 MIDDLE BEARING F4 BRONZE
5 SHAFT ASTM A276 416 316, 17 – 4PH
6 UPPER BEARING F4 BRONZE
7 O RING NBR EPDM
8 RETAINING RING CARBON STEEL 304
9 PIN ASTM A276 416 316, 17 – 4PH
10 PLUG MALLEABLE IRON CARBON STEEL

DIMENSIONS DATA (MM)

Size A B C ΦF ΦD 4 – ΦN Φd H M1 ANSI 150 (ΦJ – n×Φk1)
3″ 146 89 127 90 70 10 12.7 32 3.18 191, 152.5 – 4 – 19
4″ 177 112 127 90 70 10 15.9 32 4.78 229, 190.5 – 8 – 19
6″ 203 140 127 90 70 10 25.4 32 7.94 279, 241.5 – 8 – 22
8″ 235.5 170 152 102 12 12 28.6 45 7.94 343, 298.5 – 8 – 22
10″ 267 200 203 125 102 12 34.9 45 12.7 406, 362 – 12 – 25
12″ 312 230 203 150 125 14 38.1 45 12.7 483, 432 – 12 – 25
14″ 343 256 203 150 125 14 44.5 45 12.7 533, 476 – 12 – 29
16″ 372 299 203 210 165 12 50.8 50 12.7 597, 539.5 – 16 – 29
18″ 402 327 203 210 165 23 57.2 50 15.88 635, 578 – 16 – 32
20″ 437 352 203 210 165 23 63.5 60 15.88 699, 635 – 20 – 32
24″ 498.5 420 203 210 165 23 76.2 70 15.88 813, 749.5 – 20 – 35

Attention please: The description may be different with the goods, please check with us when order.
